1974 Yamaha MX100 Intake OEM Parts Diagram

Submodel MX100A - 1974

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

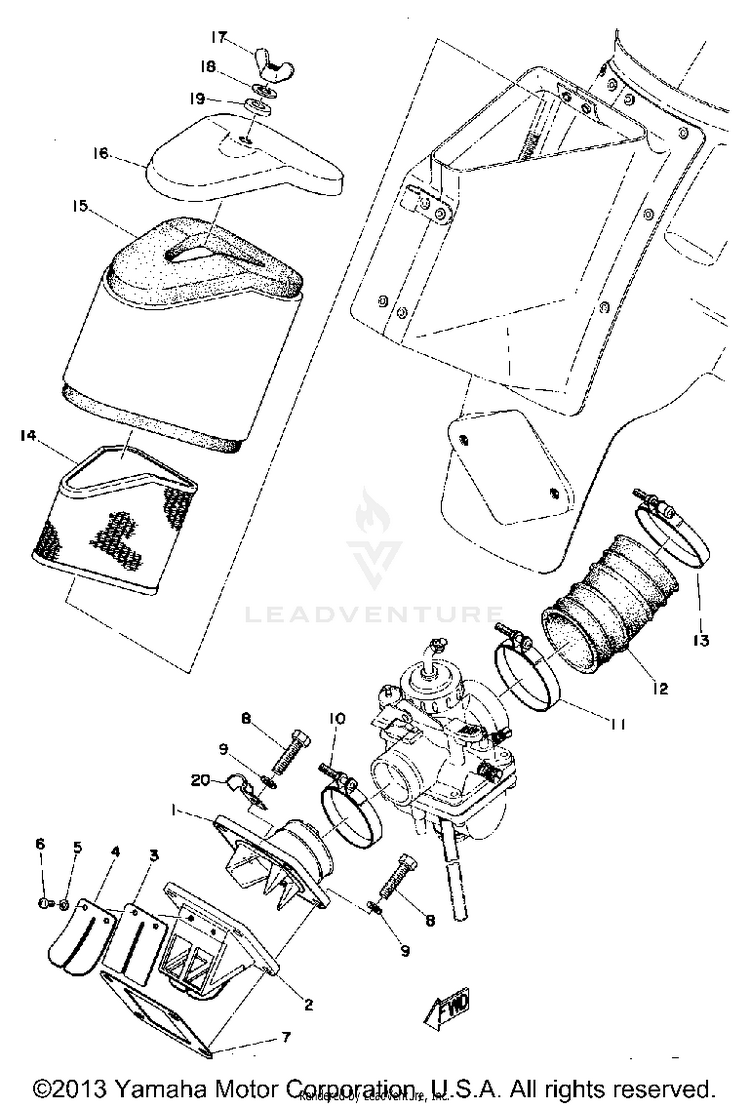

INTAKE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1401-13565-01-00JOINT, CARBURETOR$143.99$112.31Usually ships in 7-10 business days
2345-13610-20-00

(replaces part #
558-13610-00-00)

REED VALVE ASY$247.99$193.43Usually ships in 7-10 business days
32R9-13613-00-00REED, VALVE (401-13613-00)$12.99$10.65Not Shipping
4345-13616-70-00STOPPER, REED VALVE$29.99$27.46Not Shipping
592990-03100-00WASHER, SPRING$9.49$7.4010+ In-Stock
698580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
787A-13621-00-00GASKET, VALVE SEAT$9.49$7.409 In-Stock
897017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1090460-43179-00

(replaces part #
90460-43053-00)

CLAMP, HOSE$21.99$17.1510+ In-Stock
1190460-51059-00CLAMP, HOSE$18.49$14.4210+ In-Stock
12401-14453-00-00JOINT, AIR CLNR 1$10.40$8.53Not Shipping
1390460-54062-00CLAMP, HOSE (308-14455-00)$9.49$8.54Not Shipping
14401-14458-00-00GUIDE, ELEMENT$13.36$10.96Not Shipping
15401-14451-00-00ELEMENT, AIR CLNR$18.90$15.50Not Shipping
16401-14412-00-00CAP, CLEANER CASE 1$4.56$4.10Not Shipping
1790175-06008-00

(replaces part #
90175-06004-00)

NUT, WING$2.75$2.368 In-Stock
1890202-06008-00WASHER, PLATE$5.49$4.94Usually ships in 7-10 business days
1990201-06061-00WASHER, PLATE$5.49$4.94Usually ships in 7-10 business days
2090462-05005-00CLAMP$10.49$8.183 In-Stock
