1975 Yamaha DT125 Starter Generator OEM Parts Diagram

Submodel DT125B - 1975

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER GENERATOR

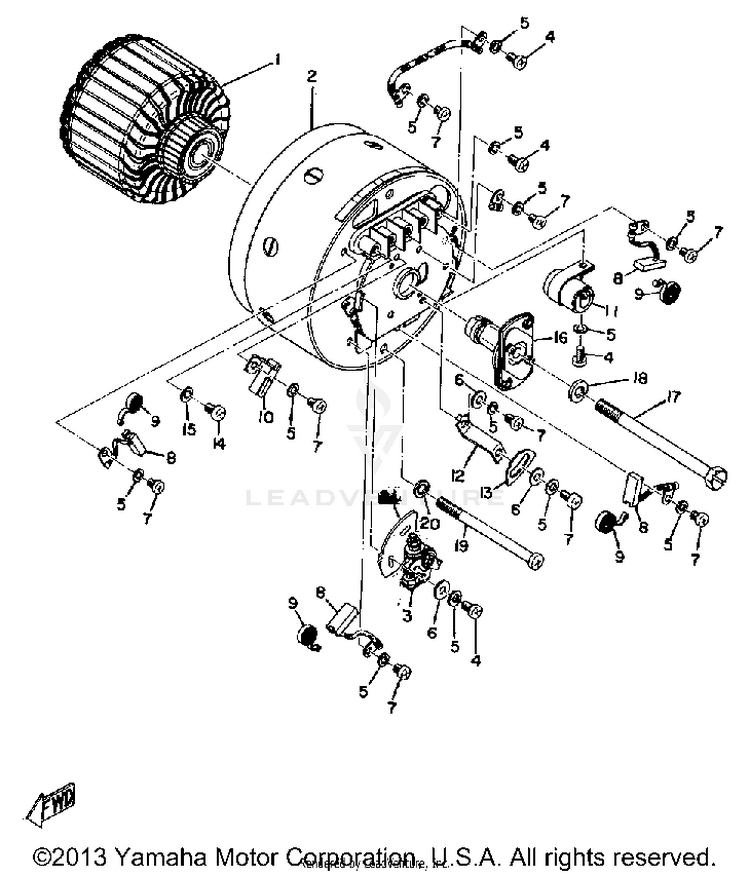

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-444-81155-10-00NO LONGER AVAILABLE$265.99$207.47Usually ships in 7-10 business days
1444-81100-10-00STARTER GEN ASSEMBLY$435.99$340.07Usually ships in 7-10 business days
2444-81110-10-00STATOR ASSEMBLY$271.99$233.02Usually ships in 7-10 business days
3183-81421-19-00CONTACT BRKR ASSEMBLY$127.99$99.83Usually ships in 7-10 business days
498580-04008-00SCREW, PAN HEAD$6.49$5.0610+ In-Stock
592990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
692990-04200-00WASHER, PLAIN$2.00$1.7210+ In-Stock
798517-04006-00

(replaces part #
98511-04006-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
8101-81111-10-00BRUSH$41.99$34.43Not Shipping
9141-81113-10-00SPRING, BRUSH$20.99$17.21Not Shipping
10207-81331-10-00LUBRICATOR$6.99$6.29Not Shipping
11278-81625-91-00

(replaces part #
148-81126-90-00)

CNDSR 2$13.49$11.06Not Shipping
12299-81133-10-00FIXTURE, TMNG PLATE$3.45$3.10Usually ships in 7-10 business days
13133-81132-10-00PLATE, TIMING$2.77$2.49Usually ships in 7-10 business days
1497885-05010-00

(replaces part #
98580-05010-00)

SCREW, PAN HEAD$3.15$2.715 In-Stock
1592990-05100-00WASHER, SPRING-$0.8310+ In-Stock
16444-81153-10-00GOVERNOR ASSEMBLY$66.96$52.23Not Shipping
17148-81152-10-00BOLT$5.04$4.54Not Shipping
1892990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
1998507-06085-00

(replaces part #
98511-06085-00)

SCREW, PAN HEAD$6.99$6.29Usually ships in 7-10 business days
2092995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
21444-81428-10-00PLATE, BREAKER$7.68$6.91Usually ships in 7-10 business days
