1975 Yamaha GT80/MX Seat OEM Parts Diagram

Submodel GT80MXB - 1975

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

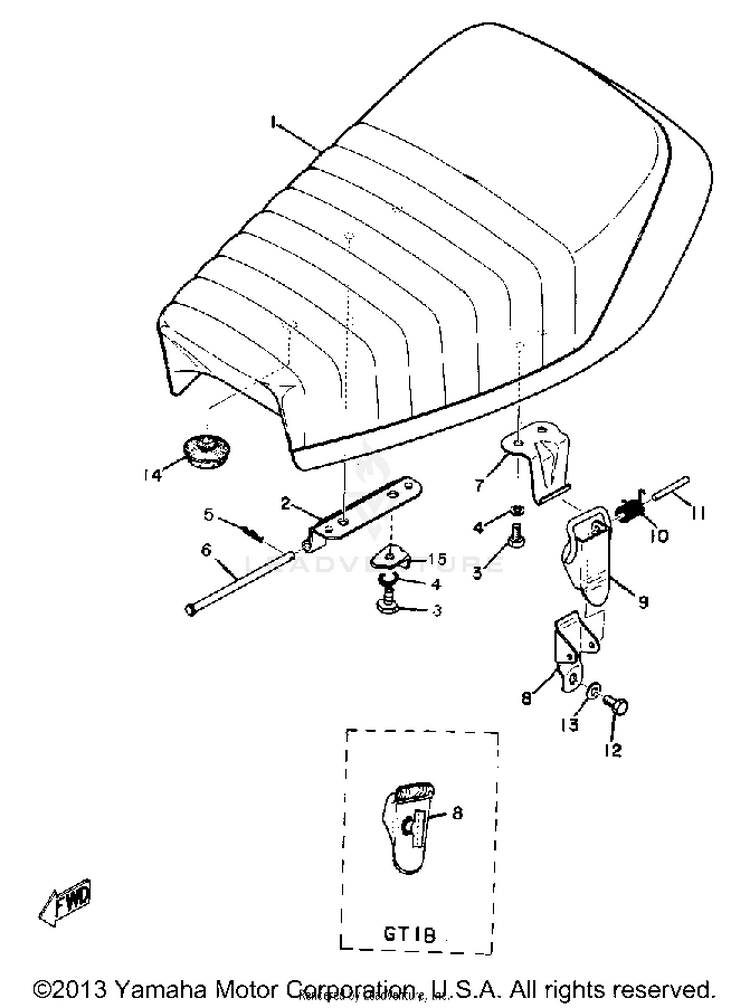

SEAT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-526-24705-00-00SEAT LOCK ASSEMBLY$52.99$41.33Usually ships in 7-10 business days
-2A3-24771-00-00COVER, SM-DBL SEAT$67.99$53.03Not Shipping
12A3-W2473-00-00SEMI-DBL-SEAT ASSEMBLY$124.99$97.49Not Shipping
2353-24726-00-00HINGE, SEAT$6.66$5.99Not Shipping
397017-06010-00

(replaces part #
97011-06010-00)

BOLT(3JP)$4.05$3.4810+ In-Stock
492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
590468-10050-00CLIP$3.05$2.6210+ In-Stock
691701-05105-00PIN, CLEVIS (3M7)$1.30$1.17Not Shipping
7278-24728-00-00BRACKET, SEAT$8.49$7.64Not Shipping
8214-24718-00-00BRACKET, SEAT$15.49$12.70Not Shipping
9214-24776-00-33LEVER, SEAT$32.99$27.05Not Shipping
1090508-10012-00SPRING, TORSION$9.99$8.99Not Shipping
1190249-04068-00PIN, SPECIAL SHAPE$2.80$2.52Not Shipping
1297013-06012-00BOLT$6.49$5.0610+ In-Stock
1392990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
141L9-24741-00-00PAD, SEAT$10.99$8.5710+ In-Stock
15374-24768-00-00STOPPER$3.85$3.46Usually ships in 7-10 business days
