1975 Yamaha MX100 Steering OEM Parts Diagram

Submodel MX100B - 1975

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

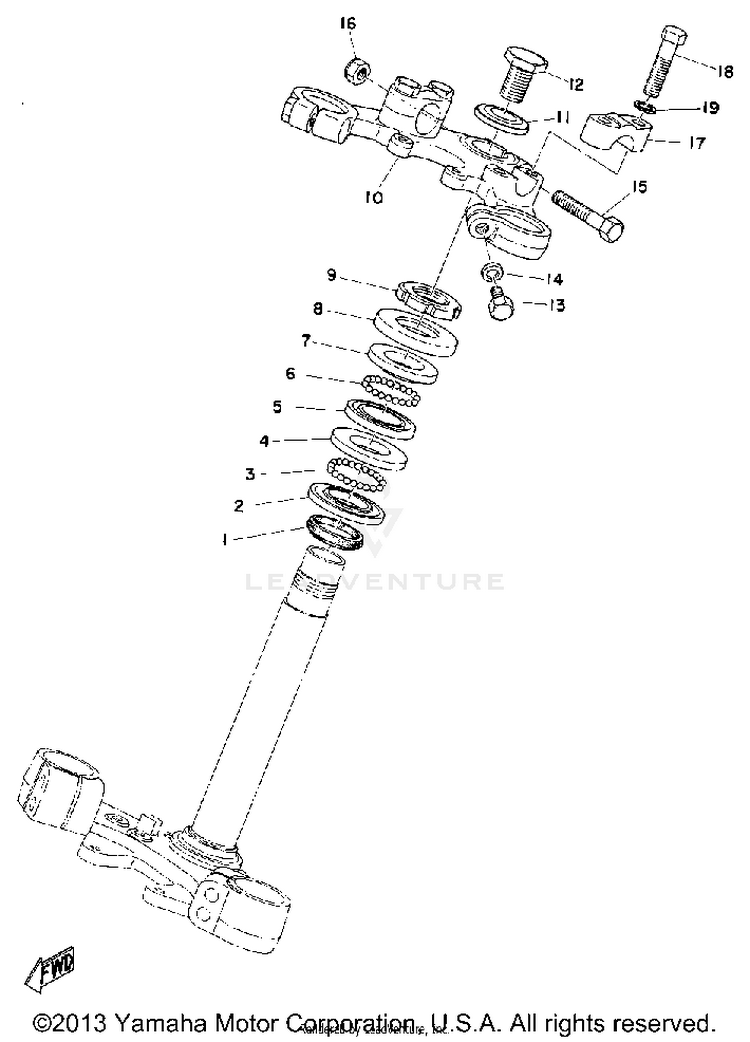

STEERING

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1164-23462-00-00SEAL, STEERING$8.49$6.628 In-Stock
2B6E-23411-00-00

(replaces part #
156-23411-00-00)

. .RACE, BALL 1$9.49$7.406 In-Stock
393501-04011-00BALL$9.49$7.4010+ In-Stock
4B6E-23412-00-00

(replaces part #
156-23412-00-00)

RACE, BALL 2$14.49$11.3010+ In-Stock
5BP2-23411-00-00

(replaces part #
22F-23411-01-00)

RACE, BALL 1$12.49$9.747 In-Stock
693503-16003-00

(replaces part #
93503-16010-00)

BALL$2.90$2.4910+ In-Stock
7BP2-23412-00-00

(replaces part #
22F-23412-01-00)

RACE, BALL 2$8.49$6.626 In-Stock
8122-23416-00-00COVER, BALL RACE 2$8.49$6.625 In-Stock
990179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
10248-23435-03-33CROWN, HANDLE | YAMAHA BLACK$68.99$53.81Usually ships in 7-10 business days
1190209-14022-00WASHER, SPEC''L SHAP (214-23443$6.49$5.84Not Shipping
1290101-14113-00BOLT (214-23451-10)$6.49$5.06Not Shipping
1397013-10030-00BOLT (8J7) (97303-10030-00)$11.49$9.42Usually ships in 7-10 business days
1492990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
1597013-08045-00

(replaces part #
97313-08045-00)

BOLT$10.49$8.604 In-Stock
1695617-08100-00

(replaces part #
95611-08100-00)

NUT, U$10.49$8.1810+ In-Stock
17401-23441-00-98HOLDER, HANDLE UPPER | YAMAHA BLACK$17.49$14.34Not Shipping
1897013-08035-00

(replaces part #
97313-08035-00)

BOLT$6.49$5.0610+ In-Stock
1992990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
