1975 Yamaha MX175 Electrical OEM Parts Diagram

Submodel MX175B - 1975

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL

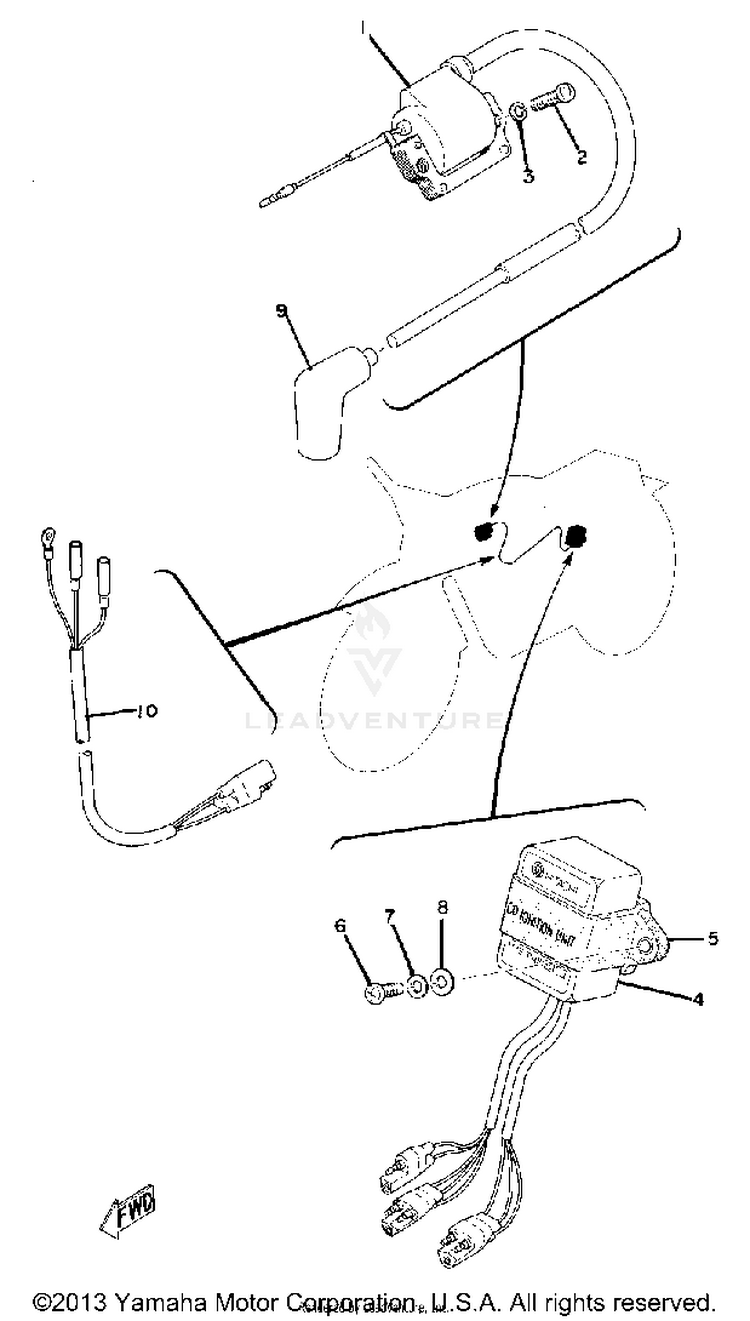

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1322-82310-10-00IGNITION COIL ASSEMBLY$83.82$65.38Not Shipping
298517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
4455-85540-00-00CDI UNIT ASSEMBLY$196.99$153.65Not Shipping
5363-85546-00-00BAND$12.10$9.92Not Shipping
697880-06018-00

(replaces part #
98580-06018-00)

SCREW, PAN HEAD$4.70$4.048 In-Stock
792990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
890201-06M08-00WASHER, PLATE$2.55$2.197 In-Stock
956J-82370-00-00PLUG CAP ASSY$70.99$55.372 In-Stock
10401-85517-00-00WIRE, SUB LEAD$5.64$5.08Not Shipping
