1976 Yamaha DT125 Exhaust OEM Parts Diagram

Submodel DT125C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

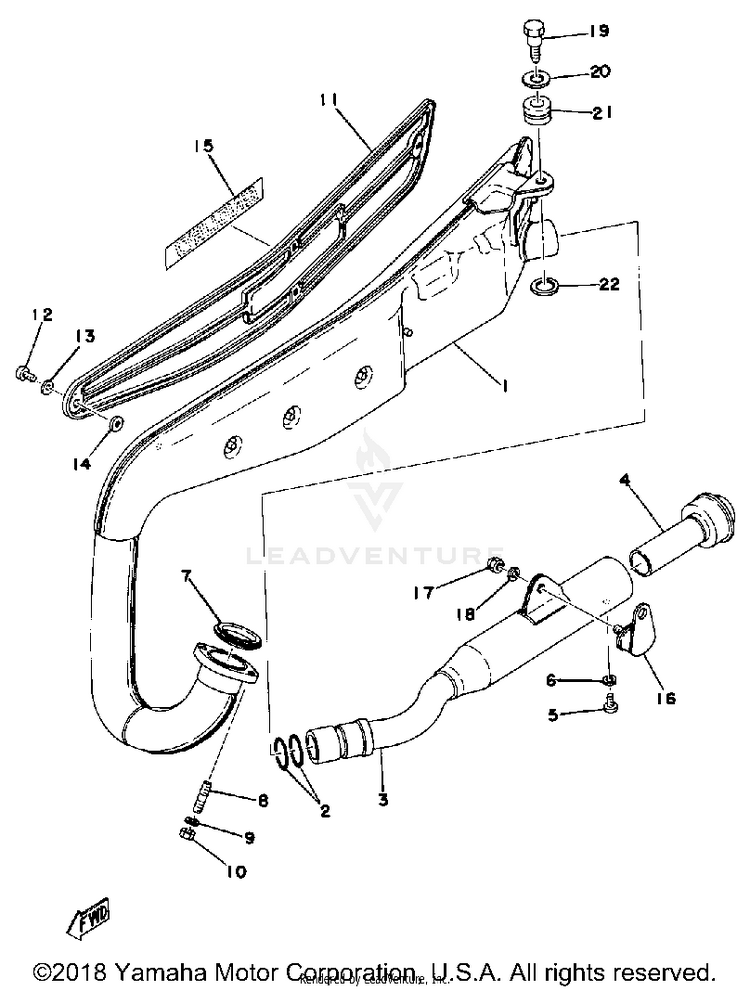

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1560-14610-00-00EXHAUST PIPE ASSEMBLY L$169.99$132.59Usually ships in 7-10 business days
293210-24235-00O-RING$8.49$7.078 In-Stock
3560-14753-00-00SILENCER, EXHAUST$58.95$45.98Usually ships in 7-10 business days
4438-14752-00-00PIPE, OUTLET$79.99$62.39Usually ships in 7-10 business days
597885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
692995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
73PA-14613-10-00

(replaces part #
152-14613-00-00)

GASKET, EXHAUST PIPE$16.49$12.8610+ In-Stock
890116-06016-00BOLT, STUD$5.99$4.672 In-Stock
992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1095380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
11560-14718-00-00PROTECTOR, MUFF 1$26.12$21.42Usually ships in 7-10 business days
1298980-06010-00

(replaces part #
98903-06010-00)

SCREW, BIND$10.49$8.6310+ In-Stock
1390202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
1490202-05188-00

(replaces part #
90202-05005-00)

WASHER, PLATE$9.49$7.404 In-Stock
15560-14729-00-00EMBLEM, PROTECTOR$3.36$3.02Usually ships in 7-10 business days
16560-14791-00-00STAY, MUFFLER$7.06$6.35Usually ships in 7-10 business days
1795303-08800-00NUT (CROWN) (93501-08800-00)$10.49$8.184 In-Stock
1892990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
1990109-08319-00BOLT$11.49$9.42Usually ships in 7-10 business days
2090201-126A7-00

(replaces part #
90201-12190-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
21168-21638-00-00DAMPER 1$10.99$8.5710+ In-Stock
2290201-18262-00WASHER, PLATE$10.49$8.1810+ In-Stock
