1976 Yamaha GT80/MX Frame - Rear Fender OEM Parts Diagram

Submodel GT80C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME - REAR FENDER

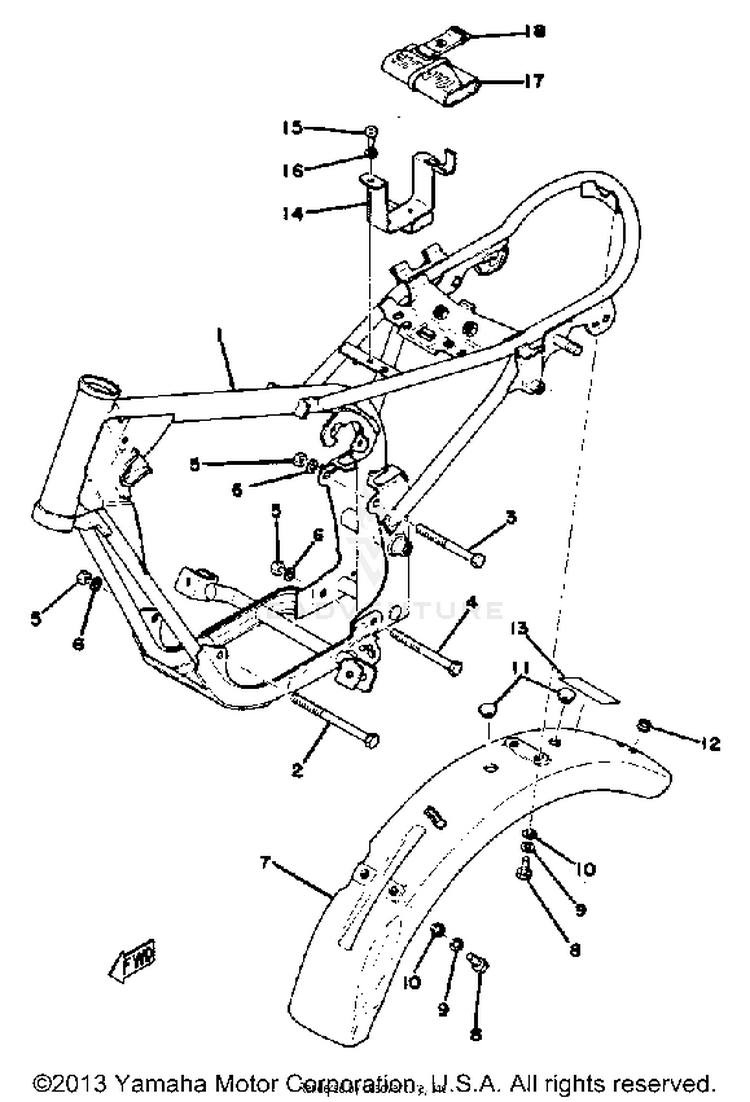

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-338-21659-00-00LABEL, SAFETY$0.50$0.45Not Shipping
-367-21610-01-36FENDER, REAR | WHITE$61.99$48.35Not Shipping
1367-21110-10-33FRAME | YAMAHA BLK$151.99$126.02Usually ships in 7-10 business days
295817-08120-00

(replaces part #
95811-08120-00)

BOLT, FLANGE$5.49$4.284 In-Stock
395817-08090-00

(replaces part #
95811-08090-00)

BOLT, FLANGE$5.99$4.674 In-Stock
495817-08095-00

(replaces part #
95811-08095-00)

BOLT, FLANGE$5.49$4.281 In-Stock
595704-08500-00

(replaces part #
95701-08500-00)

NUT, FLANGE$9.49$7.4010+ In-Stock
692990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
7367-21610-00-20FENDER, REAR | CRYSTAL SILVER$61.99$48.35Not Shipping
897013-06012-00BOLT$6.49$5.0610+ In-Stock
992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1092990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
11214-84154-60-00GROMMET$7.49$6.74Not Shipping
1290338-07043-00PLUG$9.49$7.404 In-Stock
13288-21659-00-00LABEL, SAFETY | M5-079$1.95$1.76Not Shipping
14368-21240-00-00BOX, BATT.$15.49$12.70Not Shipping
1597885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
1692995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
172U2-W2810-00-00TOOL KIT$79.99$62.39Not Shipping
1821V-21376-00-00BAND, TOOL$7.49$5.845 In-Stock
