1976 Yamaha LB80 Turnsignal OEM Parts Diagram

Submodel LB80IIHC - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TURNSIGNAL

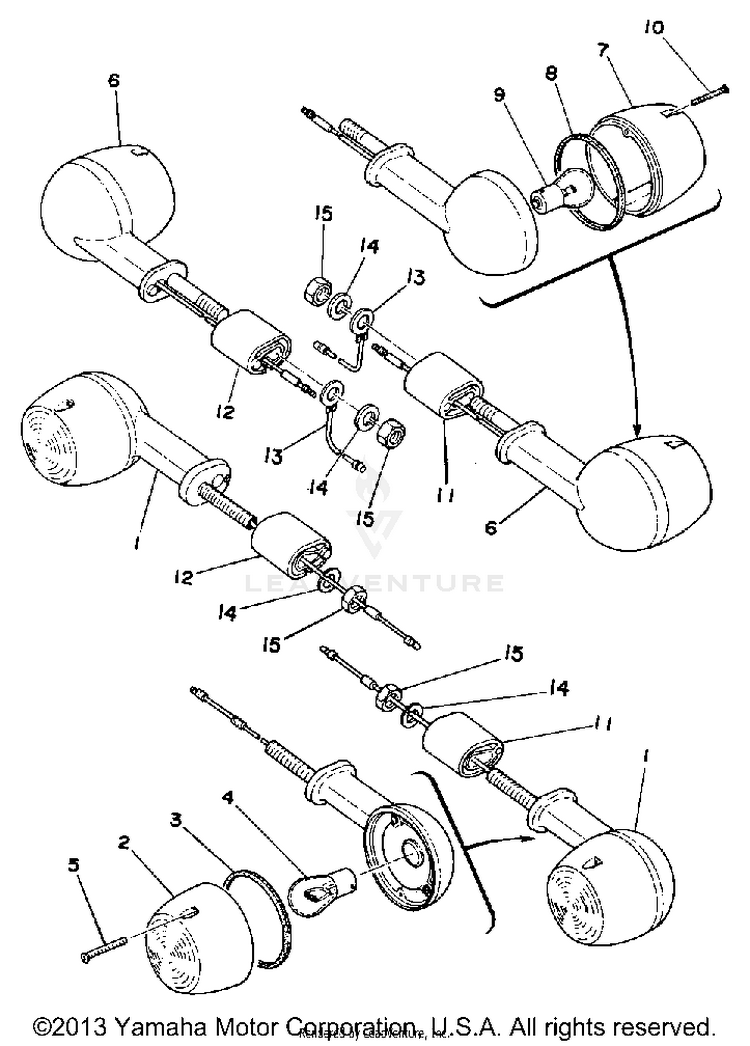

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1542-83310-60-93FRT FLSHR LITE ASSEMBLY$61.99$48.35Not Shipping
2183-83312-70-00LENS, FLASHER$22.99$18.85Usually ships in 7-10 business days
3183-83313-70-00GASKET, FLSHR LENS$9.49$8.54Usually ships in 7-10 business days
4115-83311-60-XX

(replaces part #
115-83311-60-00)

BULB 6V21CP(1129)-$9.6010+ In-Stock
5183-83333-71-00SCREW, LENS FITTING$9.49$8.548 In-Stock
6368-83330-60-93R FLSHR LITE ASSEMBLY$65.99$51.47Not Shipping
7211-83332-75-00LENS, FLASHER$3.75$3.38Not Shipping
8183-83313-70-00GASKET, FLSHR LENS$9.49$8.54Usually ships in 7-10 business days
9115-83311-60-XX

(replaces part #
115-83311-60-00)

BULB 6V21CP(1129)-$9.6010+ In-Stock
10183-83333-71-00SCREW, LENS FITTING$9.49$8.548 In-Stock
11260-83316-30-00COLLAR, FLASHER 1$47.99$39.35Not Shipping
12260-83326-30-00COLLAR, FLASHER 2$41.99$34.43Not Shipping
13256-84313-01-00WIRE, EARTH (GROUND)$4.15$3.74Not Shipping
1492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1595333-08600-00NUT$3.80$3.4710+ In-Stock
