1976 Yamaha YZ100 Intake OEM Parts Diagram

Submodel YZ100C - 1976

Shop Aftermarket Parts

INTAKE

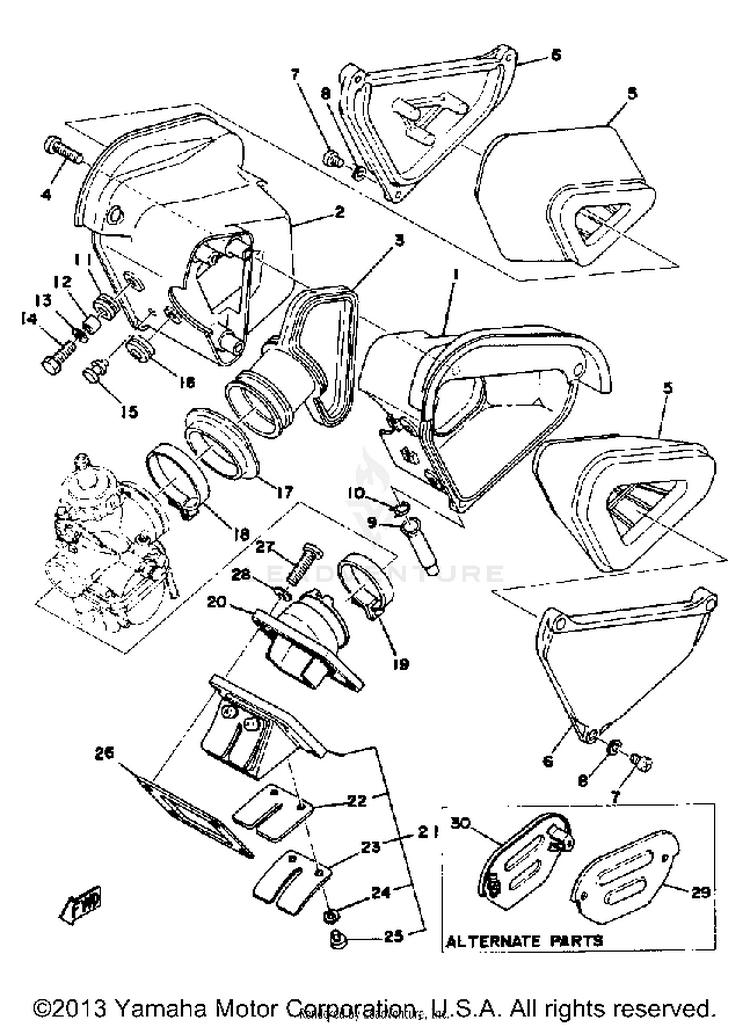

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-10V-13613-01-00REED, VALVE (1L8-13613-00-00) | YZ100C(1J4)$32.99$27.05Usually ships in 7-10 business days
-1UA-13616-00-00STOPPER, REED VALVE (10V-12616-$13.99$11.47Not Shipping
-10V-13610-01-00REED VALVE ASSEMBLY (885-13610- | YZ125X (1G8)$172.99$134.93Usually ships in 7-10 business days
-3TT-13621-00-00GASKET, VALVE SEAT | YZ125X (1G8)$21.99$17.153 In-Stock
-1J4-13565-00-00JOINT, CARBURETOR | YZ100C(1J4)$32.12$26.34Usually ships in 7-10 business days
-537-14453-00-00JOINT, AIR CLEANER 1 | YZ100C(1J4)$10.80$8.86Not Shipping
-90460-43179-00

(replaces part #
90460-43053-00)

CLAMP, HOSE$21.99$17.1510+ In-Stock
12K5-14411-00-00CASE, AIR CLEANER 1$20.99$17.21Not Shipping
22K5-14421-00-00CASE, AIR CLEANER 2$21.99$18.03Not Shipping
31G8-14453-00-00JOINT, AIR CLEANER 1 | YZ125X (1G8)$12.08$9.91Not Shipping
497885-06030-00

(replaces part #
98580-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
5537-14451-00-00ELEMENT, AIR CLNR (537-14450-00$38.99$31.97Not Shipping
6537-14412-00-00CAP, CLEANER CASE 1$14.49$11.88Not Shipping
798507-05018-00

(replaces part #
98501-05018-00)

SCREW, PAN HEAD$3.55$3.0510+ In-Stock
892990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
9509-14457-00-00SEAL (509-14457-01)$15.49$12.70Not Shipping
1090467-14015-00CLIP$9.49$7.407 In-Stock
1190480-14023-00GROMMET$8.49$6.6210+ In-Stock
1290387-07391-00COLLAR$10.49$8.1810+ In-Stock
1392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1497017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
1590480-15169-00UNAVAILABLE IN PRICE BOOK$0.00$0.00Not Shipping
1690480-20170-00GROMMET$3.96$3.56Not Shipping
17537-14417-00-00COVER 1$10.32$8.46Not Shipping
1890450-64004-00

(replaces part #
90460-64065-00)

HOSE CLAMP ASSY$16.49$12.863 In-Stock
1990460-49058-00CLAMP, HOSE$8.49$6.6710+ In-Stock
201G8-13565-01-00JOINT, CARBURETOR | YZ125X (1G8)$10.60$8.69Not Shipping
21345-13610-20-00

(replaces part #
558-13610-00-00)

REED VALVE ASY | YZ100C(1J4)$247.99$193.43Usually ships in 7-10 business days
222R9-13613-00-00REED, VALVE (401-13613-00) | YZ125X (1G8)$12.99$10.65Not Shipping
23345-13616-70-00STOPPER, REED VALVE$29.99$27.46Not Shipping
2492990-03100-00WASHER, SPRING$9.49$7.4010+ In-Stock
2598580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
2687A-13621-00-00GASKET, VALVE SEAT | YZ100C(1J4)$9.49$7.409 In-Stock
2797017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
2892990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
291G8-14412-10-00CAP, CLEANER CASE 1 | ALTERNATE PARTS$6.44$5.80Usually ships in 7-10 business days
301G8-14422-10-00CAP, CLEANER CASE 2 | ALTERNATE PARTS$7.26$6.53Usually ships in 7-10 business days
