1976 Yamaha YZ175 Electrical OEM Parts Diagram

Submodel YZ175C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL

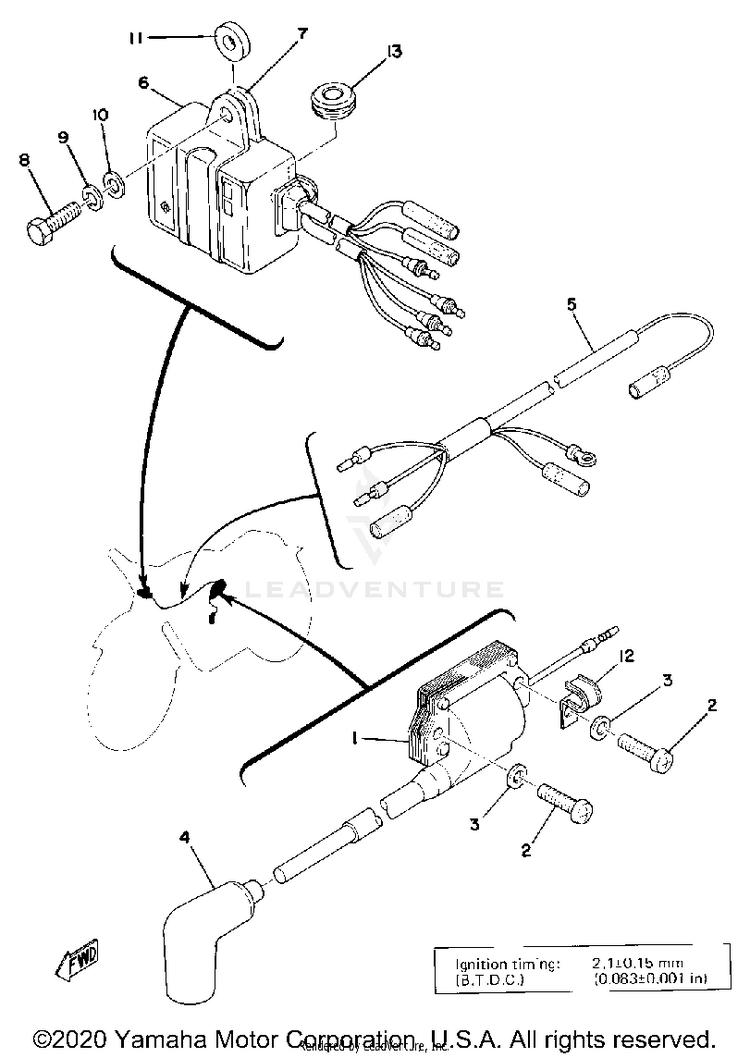

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11L8-82310-10-00IGNITION COIL ASSEMBLY$113.99$88.91Usually ships in 7-10 business days
298517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
392990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
4294-82370-00-00PLUG CAP ASSEMBLY$77.99$60.83Not Shipping
53V3-85500-10-00CDI MAGNETO ASSEMBLY$611.99$477.35Usually ships in 7-10 business days
63V3-85540-10-00INACTIVE PART NUMBER (509-85540$208.99$163.01Usually ships in 7-10 business days
7401-85550-10-00ROTOR ASSEMBLY$250.99$195.77Usually ships in 7-10 business days
897017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1092990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
1190202-06113-00WASHER, PLATE$5.49$4.94Usually ships in 7-10 business days
1290462-05005-00CLAMP$10.49$8.183 In-Stock
1390480-20170-00GROMMET$3.96$3.56Not Shipping
