HANDLE - WIRE YZ80A - YZ80B

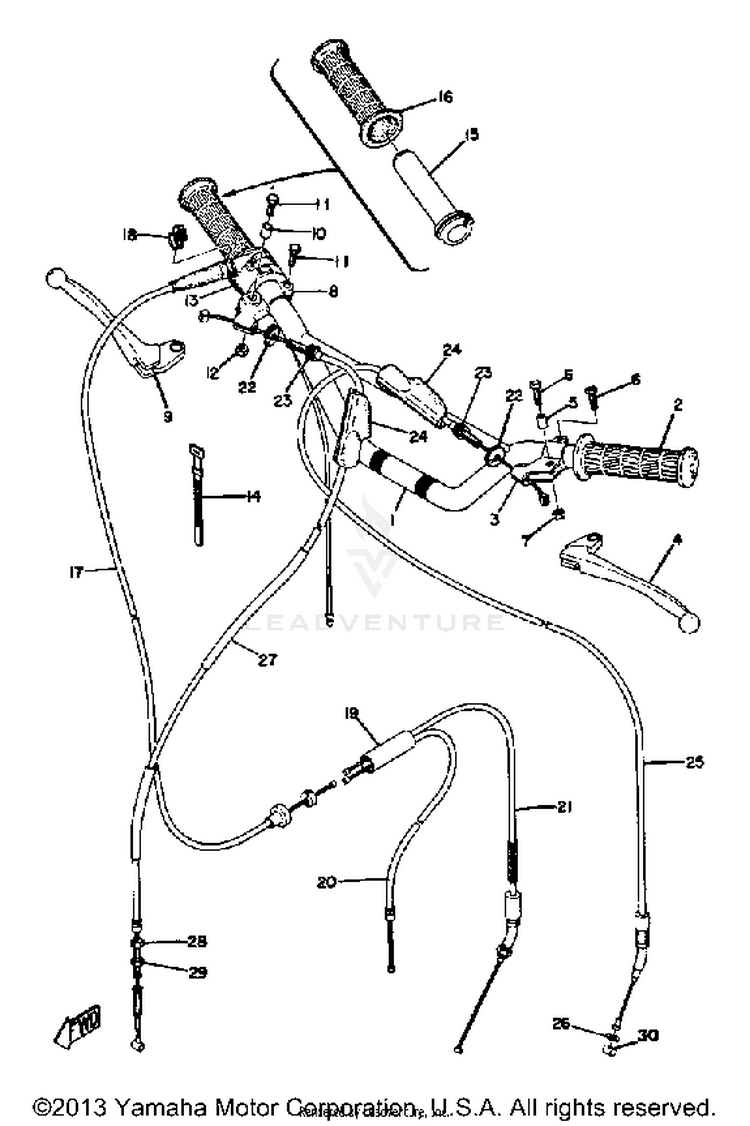

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-97024-06020-00

(replaces part #
97023-06020-00)

BOLT$9.49$7.4010+ In-Stock
-462-26241-00-00GRIP (L.H.)$17.99$14.75Not Shipping
-462-26111-00-00HANDLEBAR$32.66$26.78Not Shipping
-95617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1214-82910-07-00LEVER HOLDER ASSEMBLY 1 (214-82$51.99$40.55Not Shipping
2233-82920-32-00LEVER HOLDER ASSEMBLY 2$48.99$40.17Usually ships in 7-10 business days
3214-82911-01-00HOLDER, LEVER 1$61.99$48.352 In-Stock
4214-83912-00-00LEVER, LEFT$25.99$20.277 In-Stock
5214-83913-00-00COLLAR, LEVER 1$8.49$6.628 In-Stock
697024-06020-00

(replaces part #
97023-06020-00)

BOLT$9.49$7.4010+ In-Stock
795380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
8233-82921-31-00HOLDER, LEVER 2$74.99$58.49Usually ships in 7-10 business days
9233-83922-30-00LEVER RIGHT$24.99$19.499 In-Stock
10214-83913-00-00COLLAR, LEVER 1$8.49$6.628 In-Stock
1197017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
1295380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
13462-83976-01-00SWITCH, HANDLE 1$48.99$40.17Not Shipping
14437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
15434-26243-12-00TUBE, THROTTLE GUIDE$30.99$24.179 In-Stock
16462-26242-00-00GRIP (R.H.)$17.99$14.75Not Shipping
17462-26311-00-00CABLE, THROTTLE 1$26.99$22.13Not Shipping
1890460-12268-00CLAMP, HOSE$17.49$14.34Not Shipping
194U1-26261-00-00CONNECTOR, CABLE$43.99$34.3110+ In-Stock
20336-26312-00-00

(replaces part #
367-26312-01-00)

CABLE, THROTTLE 2$4.70$4.04Not Shipping
21462-26321-00-00CABLE, PUMP$11.88$9.74Usually ships in 7-10 business days
2290179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
2390123-08002-00

(replaces part #
90123-08013-00)

BOLT$10.49$8.1810+ In-Stock
24498-26372-00-00

(replaces part #
382-26372-01-00)

COVER, HANDLE LEVER 1$34.99$27.296 In-Stock
25462-26335-01-00CABLE, CLUTCH$21.99$18.03Not Shipping
2692990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
27462-26341-01-00CABLE, BRAKE$16.99$13.93Not Shipping
2890123-06011-00BOLT$18.49$14.424 In-Stock
2990179-06143-00NUT, SPEC''L SHAPE$9.49$7.407 In-Stock
30164-26363-00-00END, CABLE$8.49$6.627 In-Stock
