1977 Yamaha IT175 Front Fender - Rear Fender OEM Parts Diagram

Submodel IT175D - 1977

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FENDER - REAR FENDER

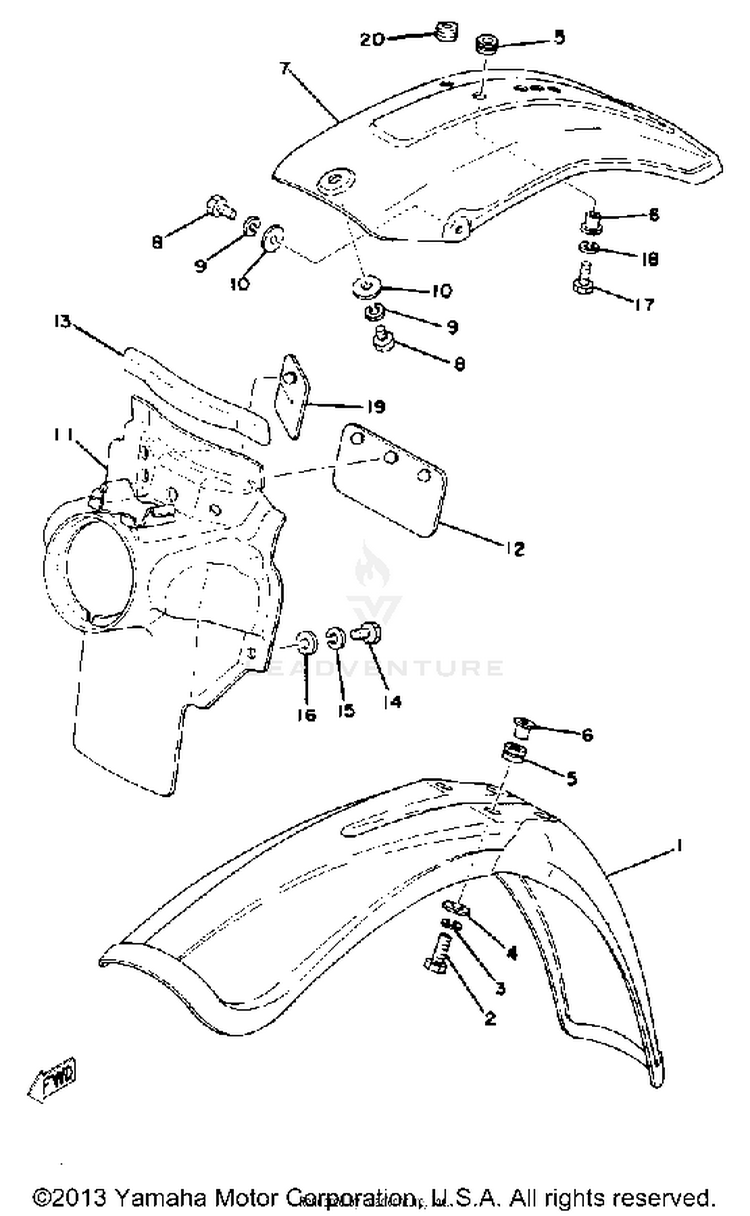

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
199999-02158-00FENDER, FRONT SET | SKY BLUE$69.99$54.59Not Shipping
297017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
490203-06067-00UNAVAILABLE IN PRICE BOOK$0.00$0.00Not Shipping
590480-14198-00GROMMET$10.49$8.1810+ In-Stock
690387-06158-00

(replaces part #
90387-06388-00)

COLLAR$9.49$7.4010+ In-Stock
71W2-21611-00-00FENDER, REAR | SKY BLUE$33.99$26.71Not Shipping
897017-06014-00

(replaces part #
97301-06014-00)

BOLT$9.49$7.4010+ In-Stock
992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1090201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
111W2-21620-90-00GUARD, MUD$23.99$19.67Usually ships in 7-10 business days
121M1-21621-00-00FLAP$17.99$14.039 In-Stock
13565-21746-00-00DAMPER$13.72$11.25Not Shipping
1497017-06014-00

(replaces part #
97301-06014-00)

BOLT$9.49$7.4010+ In-Stock
1592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1690201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
1797017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
1892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
191W2-21621-00-00FLAP$1.78$1.60Not Shipping
2090480-15058-00GROMMET$9.49$7.4010+ In-Stock
