1977 Yamaha LB80 Fuel Tank OEM Parts Diagram

Submodel LB802AD - 1977

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FUEL TANK

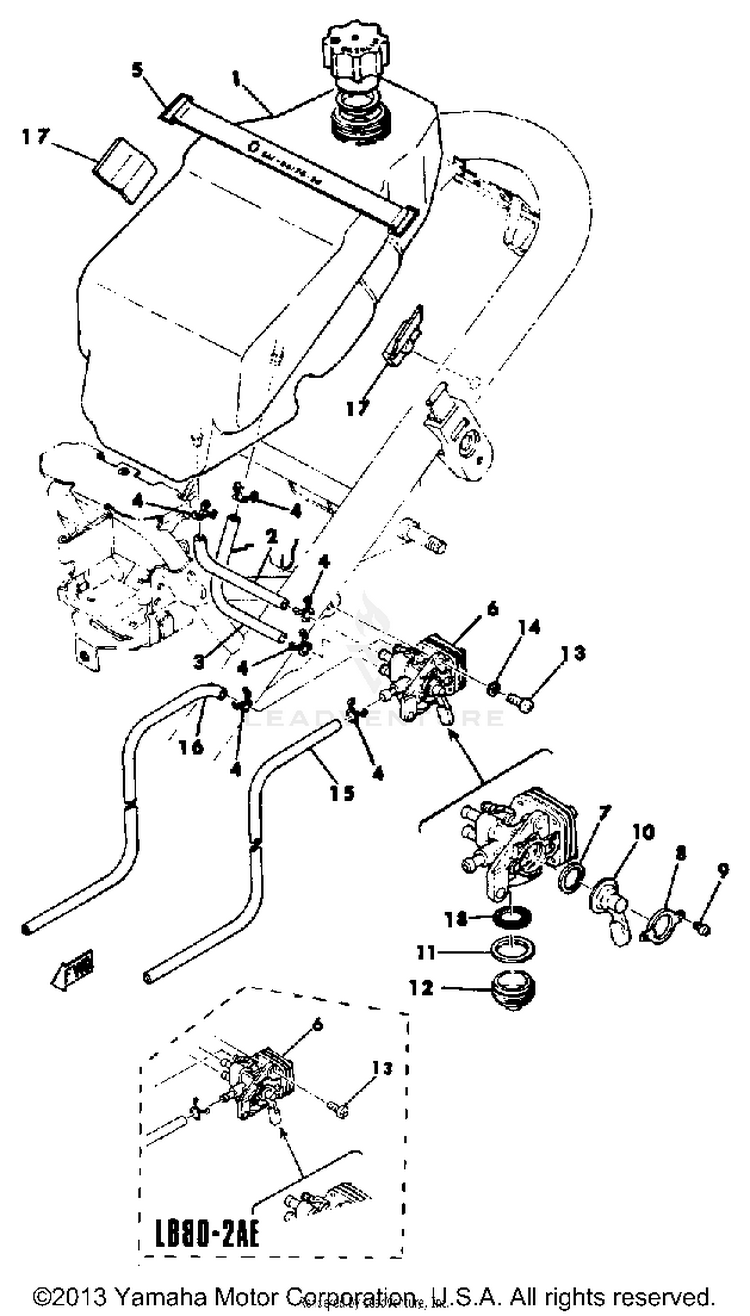

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-1L4-24616-00-00GASKET, PLATE 2$14.49$11.88Not Shipping
-395-24521-00-00CUP, FILTER$9.49$8.54Usually ships in 7-10 business days
-99999-01001-00FUEL TANK$57.99$45.23Not Shipping
-1L4-24610-00-00BODY, CAP$32.99$27.05Usually ships in 7-10 business days
-1L4-24111-00-00FUEL TANK$36.74$30.13Not Shipping
-98580-06016-00

(replaces part #
98502-06016-00)

SCREW, PAN HEAD$3.45$2.972 In-Stock
11L4-24615-00-00GASKET, PLATE 1$11.99$9.83Not Shipping
24KN-24311-01-00

(replaces part #
439-24311-00-00)

PIPE, FUEL 1$16.49$14.16Usually ships in 7-10 business days
3168-24311-00-00NO LONGER AVAILABLE$2.58$2.32Usually ships in 7-10 business days
490467-08003-00CLIP, SCISSOR$11.49$8.9610+ In-Stock
5561-24173-00-00BAND, TNK FITTING 1$35.99$29.51Usually ships in 7-10 business days
6439-24500-02-00FUEL COCK ASSEMBLY 1$186.99$145.85Usually ships in 7-10 business days
7266-24523-00-00VALVE$11.99$9.83Usually ships in 7-10 business days
8439-24525-00-00PLATE, LVR FITTING$3.36$3.02Usually ships in 7-10 business days
998580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
10439-24524-00-00LEVER, COCK$27.99$22.95Usually ships in 7-10 business days
11266-24522-00-00GASKET$7.49$6.74Usually ships in 7-10 business days
12266-24521-01-00CUP, FILTER$15.99$13.11Usually ships in 7-10 business days
1398507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
155RB-24315-00-00

(replaces part #
90445-09304-00)

PIPE 5$8.49$6.6210+ In-Stock
16439-24317-00-00PIPE 7$7.78$7.00Not Shipping
17439-24182-00-00DAMPER, LOCATING 2$6.99$6.29Usually ships in 7-10 business days
18266-24515-00-00NET, FILTER 2$8.49$7.64Not Shipping
