1977 Yamaha XT500 Tail Lamp OEM Parts Diagram

Submodel XT500D - 1977

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAIL LAMP

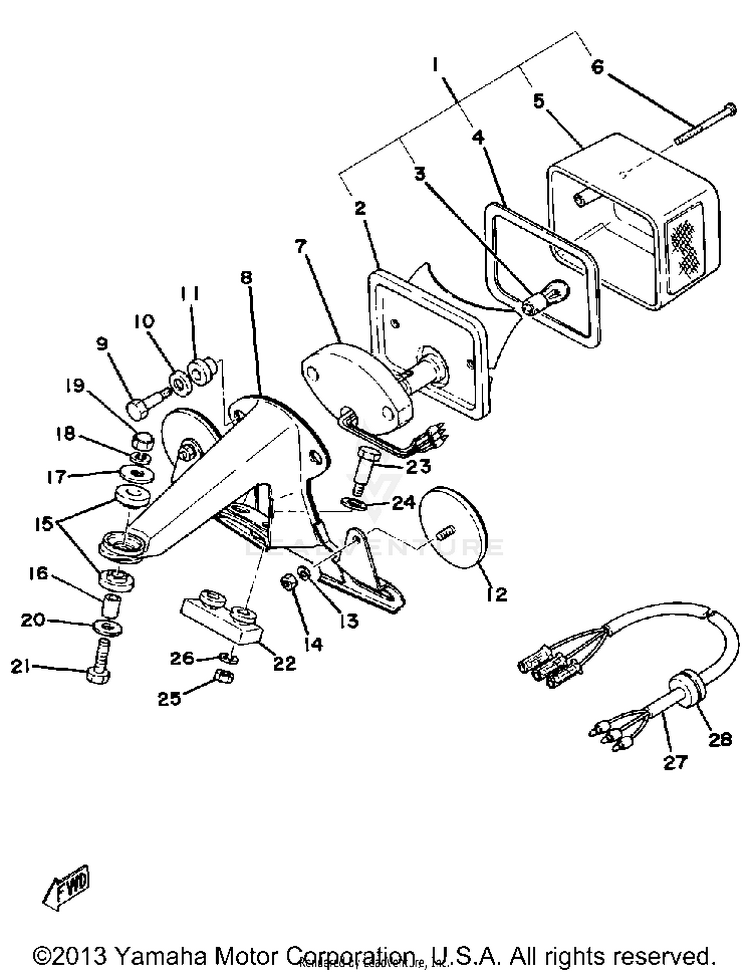

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11M1-84510-60-00TAILLIGHT UNIT ASSEMBLY$179.99$140.39Not Shipping
21M1-84511-60-00BASE, TAILLIGHT$51.99$40.55Not Shipping
31M1-84514-60-XX

(replaces part #
1M1-84514-60-00)

BULB 6VP21/5W(17904)$4.80$4.13Not Shipping
41M1-84523-60-00GASKET, LENS$14.49$11.303 In-Stock
51M1-84521-60-00LENS, TAILLIGHT$43.99$34.315 In-Stock
65BF-8433E-00-00

(replaces part #
1M1-84524-60-00)

SCREW, ADJUSTING$8.49$6.6210+ In-Stock
71T2-84512-60-00SEAT, BASE$9.49$8.54Not Shipping
81T2-84551-60-33BRACKET, LICENCE | YAMAHA BLACK$51.88$40.47Not Shipping
91T2-84526-60-00SCREW$9.49$8.54Not Shipping
102H7-84754-00-00WASHER, SPECIAL$11.99$9.83Usually ships in 7-10 business days
111M1-84527-60-00DAMPER$9.49$8.54Usually ships in 7-10 business days
12449-85131-02-00REFLECTOR, REAR 1$33.99$26.514 In-Stock
1392990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1495380-05600-00NUT$9.49$8.54Usually ships in 7-10 business days
15322-21541-00-00DAMPER 1$8.49$6.628 In-Stock
1690387-07598-00COLLAR$6.49$5.0610+ In-Stock
1790201-06086-00

(replaces part #
90201-06073-00)

WASHER, PLATE$8.49$7.0110+ In-Stock
1892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1995380-06800-00

(replaces part #
95303-06800-00)

NUT, CROWN$9.49$7.4010+ In-Stock
2090201-06061-00WASHER, PLATE$5.49$4.94Usually ships in 7-10 business days
2197017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
22308-84553-00-00DAMPER$9.49$8.54Not Shipping
2390109-06022-00BOLT (338-84552-00-00)$10.49$8.60Usually ships in 7-10 business days
2490209-08125-00WASHER$12.49$10.24Usually ships in 7-10 business days
2595380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
2692995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
271E6-84517-00-00CORD, TAILLIGHT$11.99$9.83Usually ships in 7-10 business days
2890480-15061-00GROMMET$9.49$8.54Usually ships in 7-10 business days
