1977 Yamaha YZ80 Starter Yz80d E OEM Parts Diagram

Submodel YZ80D - 1977

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER YZ80D E

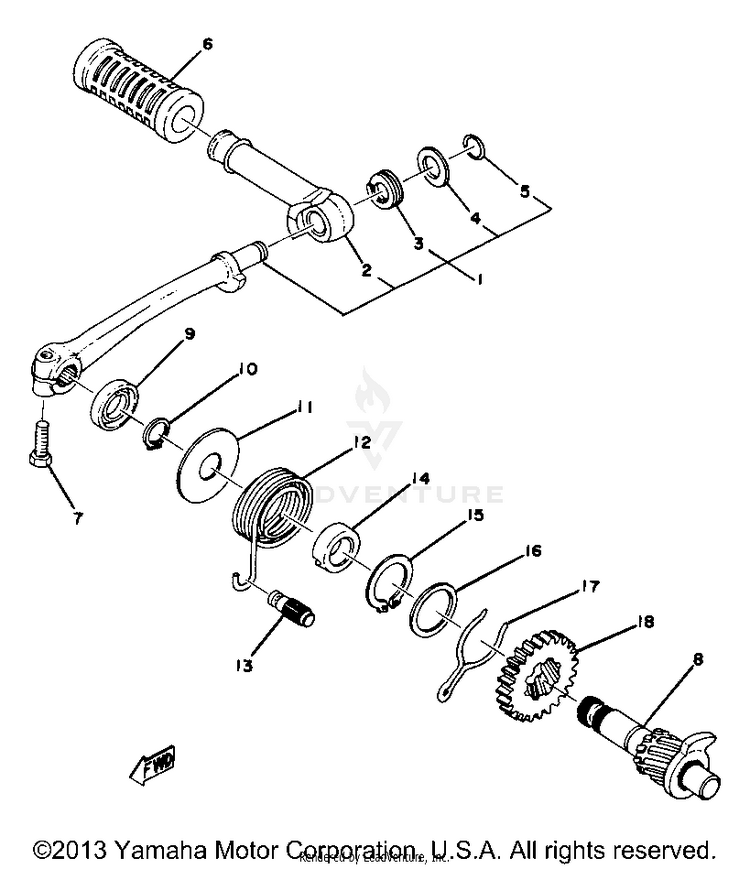

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-462-15666-00-00SPACER$5.04$4.54Usually ships in 7-10 business days
13AY-15620-00-00KICK CRANK ASSEMBLY$122.99$95.93Usually ships in 7-10 business days
2214-15612-09-00LEVER, KICK$15.49$12.70Not Shipping
390504-18031-00SPRING, COMPRESSION$10.49$8.188 In-Stock
490209-10210-00

(replaces part #
90209-10108-00)

WASHER,SPEC'L SHAPE$2.35$2.12Not Shipping
593440-10028-00CIRCLIP, OUTER$2.55$2.30Not Shipping
6156-15618-01-00COVER, KICK LEVER$8.49$6.6210+ In-Stock
797017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
8462-15660-00-00KICK AXLE ASSEMBLY$50.44$39.34Not Shipping
993109-15001-00OIL SEAL, SDO-TYPE$9.49$7.408 In-Stock
1099009-15400-00CIRCLIP (55X)$9.49$7.4010+ In-Stock
11462-15676-00-00COVER, SPRING$3.95$3.56Usually ships in 7-10 business days
1290508-26196-00SPRING, TORSION (451-15665-00)$6.99$6.29Not Shipping
13248-15668-00-00STOPPER$8.49$6.6210+ In-Stock
142J5-15666-00-00SPACER$12.49$10.24Usually ships in 7-10 business days
1593410-25017-00CIRCLIP, S-TYPE$4.05$3.4810+ In-Stock
1690201-253K0-00WASHER, PLATE (T=1.0)$9.49$7.4010+ In-Stock
1790468-26038-00CLIP$7.99$7.19Usually ships in 7-10 business days
18353-15641-00-00GEAR, KICK (24T)$64.99$50.69Usually ships in 7-10 business days
