1978 Yamaha GT80/MX Steering Gt80e-009161 - Gt80f OEM Parts Diagram

Submodel GT80E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING GT80E-009161 - GT80F

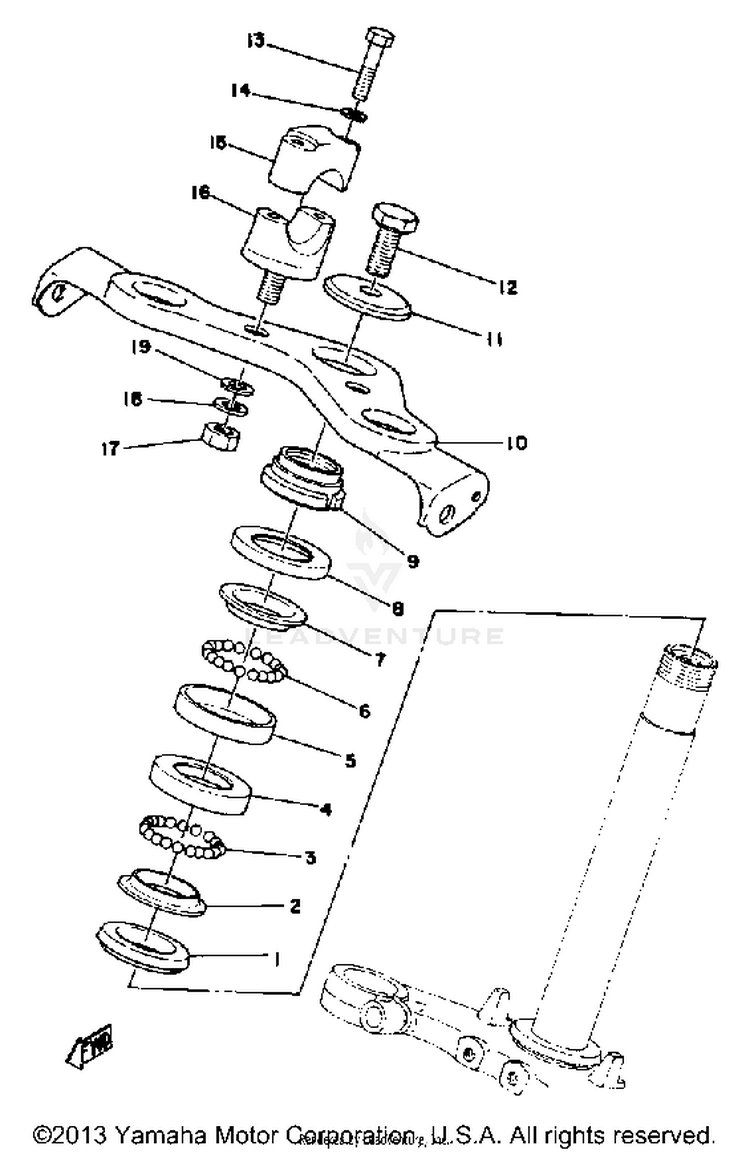

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1164-23462-00-00SEAL, STEERING$8.49$6.628 In-Stock
2B6E-23411-00-00

(replaces part #
156-23411-00-00)

. .RACE, BALL 1$9.49$7.406 In-Stock
393501-04011-00BALL$9.49$7.4010+ In-Stock
4B6E-23412-00-00

(replaces part #
156-23412-00-00)

RACE, BALL 2$14.49$11.3010+ In-Stock
5BP2-23412-00-00

(replaces part #
22F-23412-01-00)

RACE, BALL 2$8.49$6.626 In-Stock
693503-16003-00

(replaces part #
93503-16010-00)

BALL$2.90$2.4910+ In-Stock
7BP2-23411-00-00

(replaces part #
22F-23411-01-00)

RACE, BALL 1$12.49$9.747 In-Stock
8122-23416-00-00COVER, BALL RACE 2$8.49$6.625 In-Stock
990179-25051-00NUT$36.99$28.853 In-Stock
10368-23435-00-35CROWN, HANDLE | SILVER$12.49$10.24Not Shipping
1190209-10160-00

(replaces part #
90209-10021-00)

WASHER, SPEC''L SHAP$8.49$6.6210+ In-Stock
1290105-10006-00BOLT, FLANGE$12.49$9.7410+ In-Stock
1397313-10603-50UNAVAILABLE IN PRICE BOOK (9731$0.00$0.00Not Shipping
1490201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
15462-23441-01-00

(replaces part #
462-23441-00-00)

HOLDER,HANDLE UPR$16.99$13.93Usually ships in 7-10 business days
16462-23442-00-98HOLDER, HANDLE LWR$15.99$13.11Usually ships in 7-10 business days
1795314-10600-00

(replaces part #
95303-10600-00)

NUT$2.55$2.19
1892990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
1992990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
