1978 Yamaha YZ100 Electrical Yz100 E - F OEM Parts Diagram

Submodel YZ100E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL YZ100 E - F

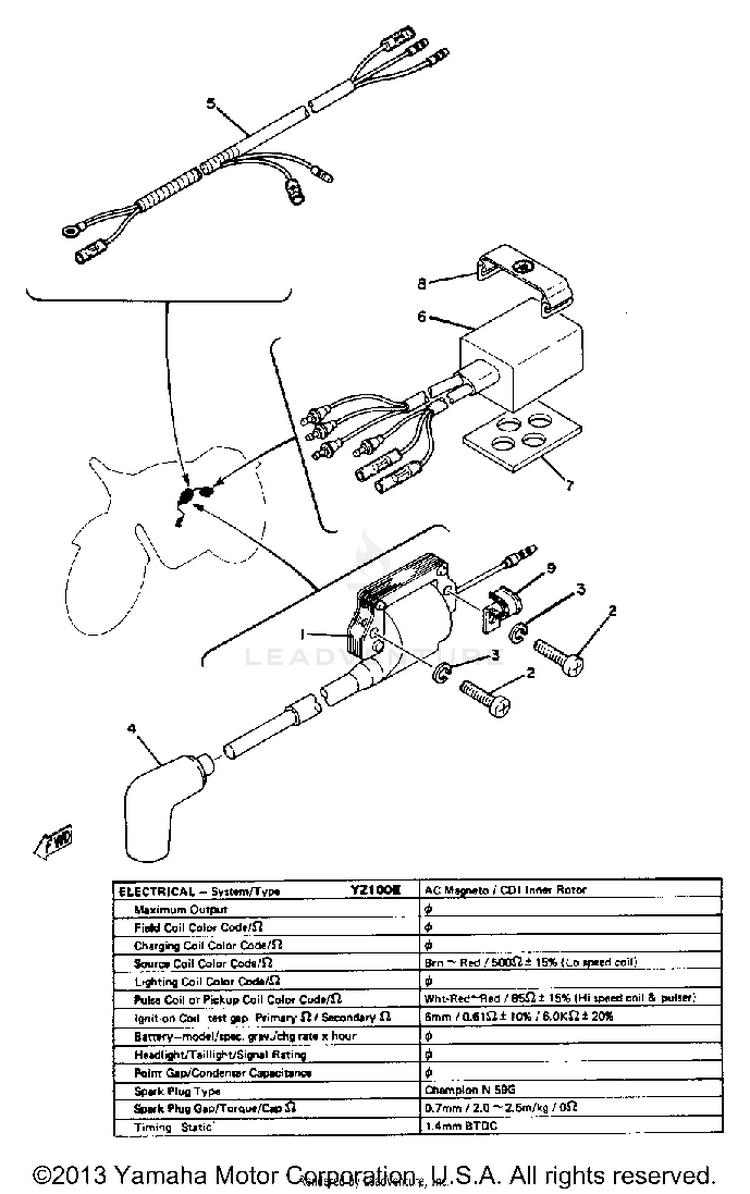

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-294-82370-00-00PLUG CAP ASSEMBLY$77.99$60.83Not Shipping
-2X6-82310-10-00IGNITION COIL ASSEMBLY$121.99$95.15Not Shipping
-1M2-85547-00-00DAMPER$4.10$3.69Not Shipping
-2W5-82590-00-00WIRE HARNESS ASSEMBLY$7.68$6.91Usually ships in 7-10 business days
-2X6-85540-10-00CDI UNIT ASSEMBLY$203.99$159.11Not Shipping
-21V-21376-00-00BAND, TOOL$7.49$5.845 In-Stock
1565-82310-10-00IGNITION COIL ASSEMBLY$82.66$64.47Not Shipping
298517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
4808-82370-10-00PLUG CAP ASSEMBLY$35.99$29.51Usually ships in 7-10 business days
52K5-82590-00-00WIRE HARNESS ASSEMBLY$6.66$5.99Usually ships in 7-10 business days
63V3-85540-10-00INACTIVE PART NUMBER (509-85540$208.99$163.01Usually ships in 7-10 business days
73RB-85547-01-00

(replaces part #
2K7-85547-00-00)

DAMPER$9.49$8.54Not Shipping
826L-82131-00-00

(replaces part #
122-82131-00-00)

BAND, BATTERY$8.49$6.627 In-Stock
990462-05005-00CLAMP$10.49$8.183 In-Stock
