1979 Yamaha DT100 Crankcase Cover OEM Parts Diagram

Submodel DT100F - 1979

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE COVER

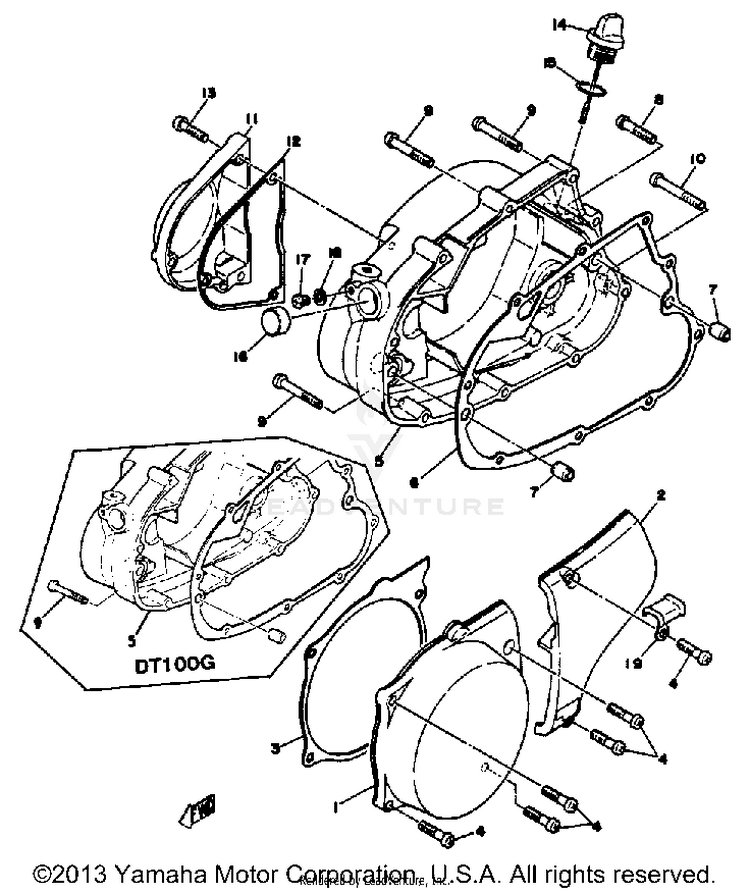

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-401-15362-00-00PLUG, OIL LEVEL$20.99$17.21Not Shipping
-93210-21190-00O-RING$8.49$6.6210+ In-Stock
11X0-15411-00-00COVER, CRANKCASE L$72.99$56.93Usually ships in 7-10 business days
2401-15421-00-00COVER, CRANKCASE R$54.99$42.89Not Shipping
33UL-15455-00-00

(replaces part #
1X0-15455-00-00)

GASKET 1$24.99$19.491 In-Stock
498580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
5401-15431-00-00COVER, CRANKCASE 3$166.99$130.25Usually ships in 7-10 business days
63UL-15451-00-00

(replaces part #
401-15451-00-00)

GASKET, CRANKCASE COVER 1$22.99$17.935 In-Stock
799530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
897885-06030-00

(replaces part #
98580-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
998580-06040-00SCREW, PAN HEAD$9.49$7.408 In-Stock
1098580-06545-00SCREW, PAN HEAD (92503-06045-00$6.49$5.4910+ In-Stock
111X0-15416-00-00COVER, OIL PUMP$42.99$35.25Not Shipping
123UL-15456-01-00

(replaces part #
3UL-15456-00-00)

GASKET, OIL PUMP COVER 1$12.99$10.131 In-Stock
1398517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
1418G-15362-00-00PLUG, OIL LEVEL$28.99$22.614 In-Stock
1593210-19123-00O-RING$8.99$7.0110+ In-Stock
1690338-20023-00PLUG$6.49$5.062 In-Stock
1798580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.409 In-Stock
1892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1990461-10016-00CLAMP$7.99$7.19Not Shipping
