1979 Yamaha IT400 Head Lamp OEM Parts Diagram

Submodel IT400F - 1979

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

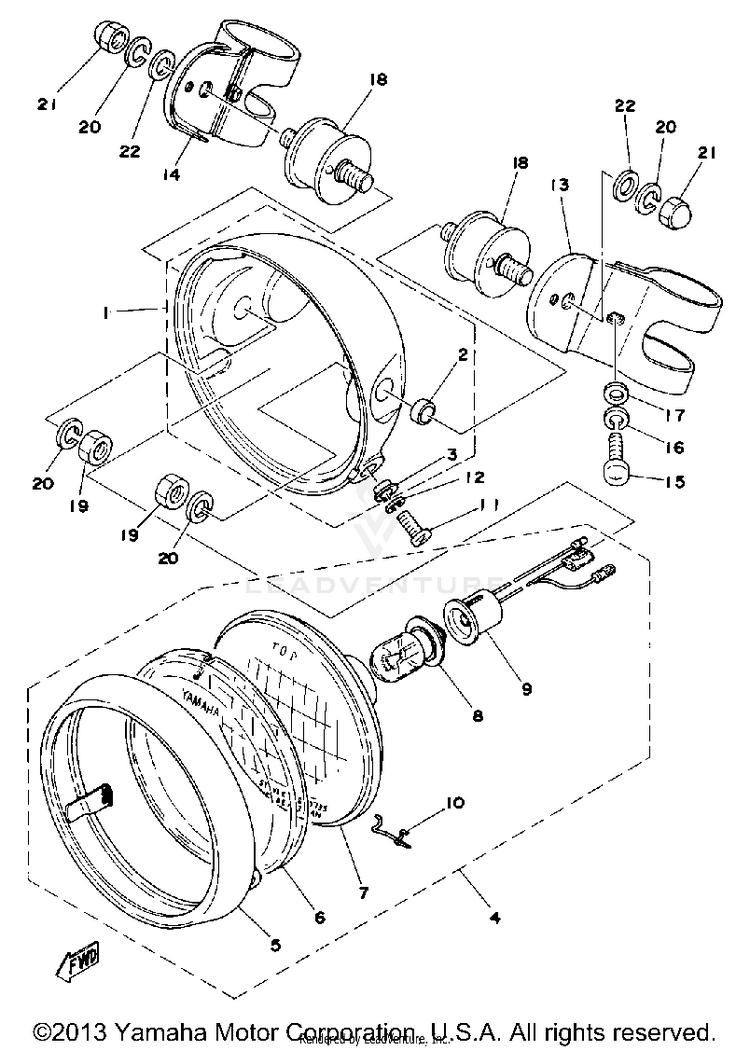

HEAD LAMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11W2-84130-60-00BODY ASSEMBLY, HEADLIGHT | YAMAHA BLACK$63.99$49.91Not Shipping
21W2-84145-60-00COLLAR, BODY FTNG$2.58$2.32Usually ships in 7-10 business days
31L9-84338-60-00COLLAR, BODY FTNG$5.49$4.94Usually ships in 7-10 business days
41W2-84110-60-00UNAVAILABLE IN PRICE BOOK | N/A$0.00$0.00Not Shipping
51W2-84115-60-00RIM, HEADLIGHT$18.02$14.78Not Shipping
61W2-84144-60-00COVER, HEADLIGHT$16.54$13.56Not Shipping
73R8-84120-60-00LENS ASSEMBLY$15.49$12.70Not Shipping
8527-84114-09-XXBULB, HL 6V25/25W$6.49$5.06Not Shipping
91W2-84112-60-00SOCKET$15.88$13.02Not Shipping
101W2-84324-60-00SPRING, REFLECTOR$8.99$8.09Not Shipping
1197885-05016-00

(replaces part #
98580-05016-00)

SCREW, PAN HEAD$4.70$4.049 In-Stock
1292990-05100-00WASHER, SPRING-$0.8310+ In-Stock
131W2-84118-00-33STAY, HEADLIGHT 1 | YAMAHA BLACK$7.88$7.09Not Shipping
141W2-84119-00-33STAY, HEADLIGHT 2 | YAMAHA BLACK$9.28$8.35Not Shipping
1598580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1692995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1792990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
181W2-84143-00-00DAMPER, HDLT STAY$18.49$15.16Not Shipping
1995333-08600-00NUT$3.80$3.4710+ In-Stock
2092990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
2195303-08800-00NUT (CROWN) (93501-08800-00)$10.49$8.184 In-Stock
2292990-08600-00

(replaces part #
92901-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
