1979 Yamaha MX100 Flywheel Magneto OEM Parts Diagram

Submodel MX100F - 1979

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

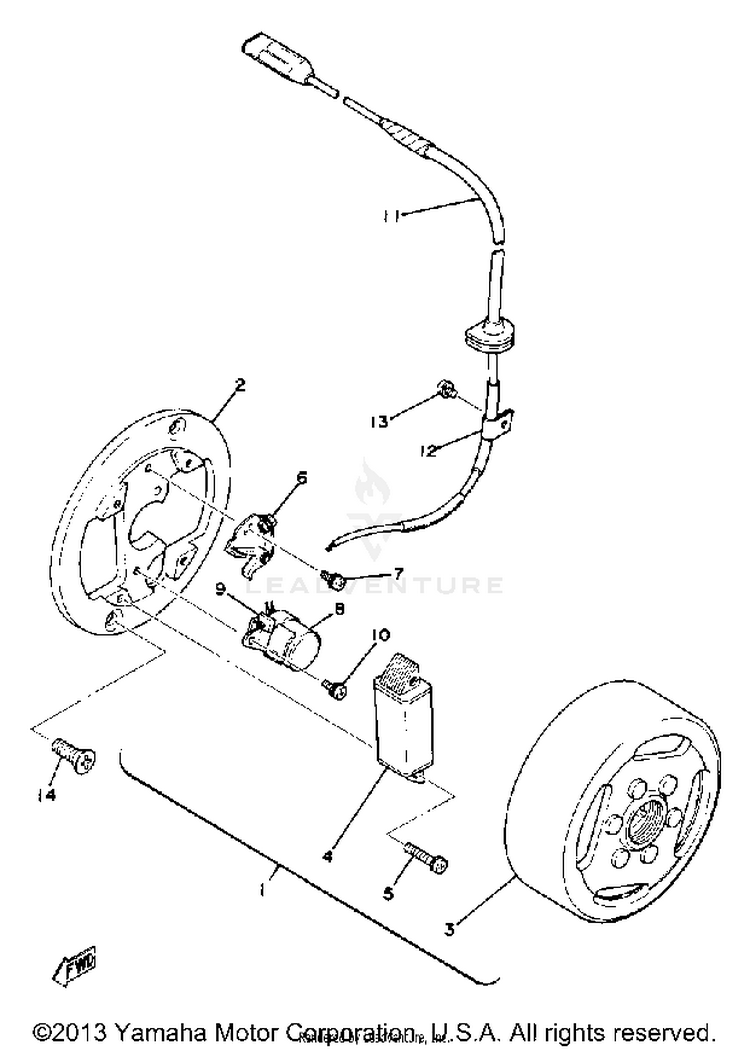

FLYWHEEL MAGNETO

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13M1-81300-20-00FLYWHL MAGNETO ASSEMBLY$119.99$93.59Not Shipping
2437-81309-20-00BASE, MAGNETO$54.99$42.89Not Shipping
33M1-81350-20-00ROTOR ASSEMBLY$88.72$69.20Usually ships in 7-10 business days
4511-81312-20-00COIL, SOURCE$163.99$127.91Usually ships in 7-10 business days
598517-04025-00

(replaces part #
97602-04125-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
62A6-81321-20-00CONTACT BRKR ASSEMBLYASSY$54.99$42.891 In-Stock
7110-81346-21-00SCREW, PAN HEAD$5.99$4.676 In-Stock
81K8-81325-20-00CONDENSER 1$69.99$54.59Usually ships in 7-10 business days
9116-81331-20-00LUBRICATOR$10.49$8.60Usually ships in 7-10 business days
10110-81346-21-00SCREW, PAN HEAD$5.99$4.676 In-Stock
113M1-81315-20-00LEAD WIRE ASSEMBLY$8.28$7.45Not Shipping
12104-81328-20-00CLAMP, LEAD$4.60$4.14Usually ships in 7-10 business days
1398517-04006-00

(replaces part #
97601-04106-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
1498603-06012-00SCREW, OVAL HEAD (92701-06012)$1.85$1.66Not Shipping
