1980 Yamaha IT175 Seat OEM Parts Diagram

Submodel IT175G - 1980

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

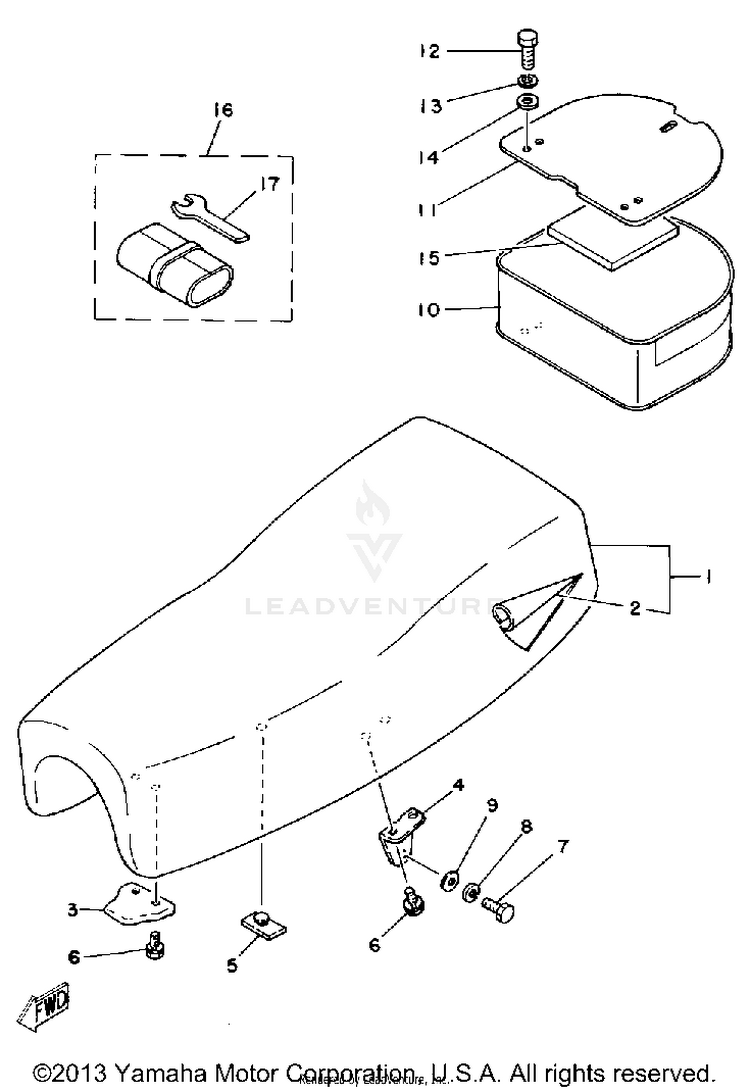

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13R6-W2473-10-00SEMI-DBL-SEAT ASSEMBLY$117.99$92.03Not Shipping
23R6-24771-10-00COVER, SM-DBL SEAT$60.99$47.57Not Shipping
31M1-24748-00-00BRACKET, SEAT$11.99$9.83Not Shipping
4509-24738-01-00BRACKET, SEAT$29.99$24.59Not Shipping
5509-24724-00-00DAMPER, SEAT$11.99$9.353 In-Stock
690101-06304-00BOLT$8.49$6.624 In-Stock
797017-06014-00

(replaces part #
97301-06014-00)

BOLT$9.49$7.4010+ In-Stock
892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
992990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
101W2-24850-01-00CARRIER BOX ASSEMBLY$134.99$105.29Not Shipping
111W2-24833-01-00BRACKET, CARRIER 2$21.99$18.03Usually ships in 7-10 business days
1297017-06020-00

(replaces part #
97001-06018-00)

BOLT$4.06$3.4910+ In-Stock
1392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1490201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
151W2-24854-00-00DAMPER$3.57$3.21Not Shipping
161W2-W2810-00-00TOOL KIT$73.99$57.71Not Shipping
1710V-28135-00-00SPANNER, SPECIAL$41.99$34.43Not Shipping
