1981 Yamaha MX175 Handle Switch - Lever OEM Parts Diagram

Submodel MX175H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH - LEVER

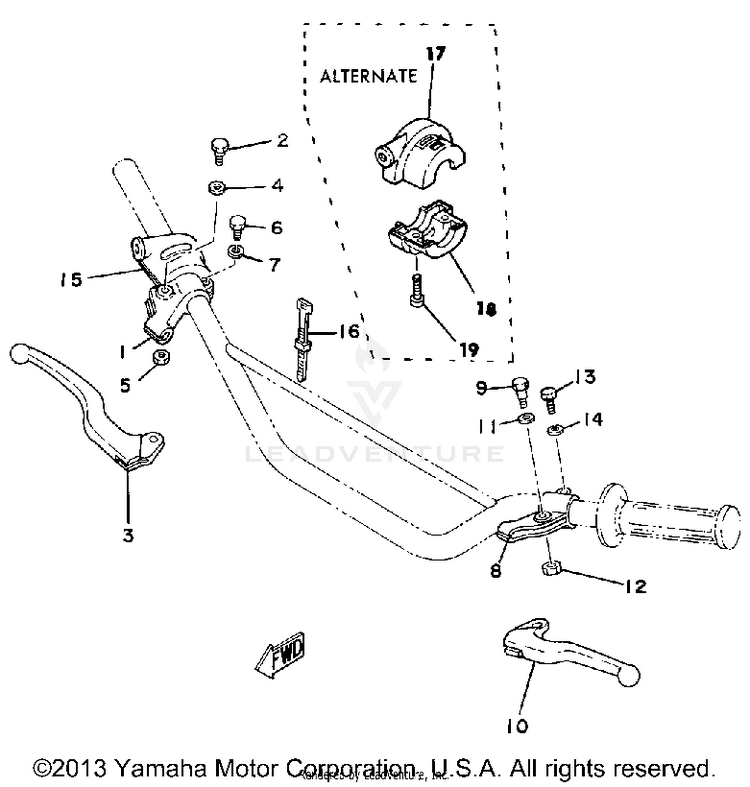

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1516-82921-30-00HOLDER, LEVER 2$63.99$49.91Not Shipping
290109-061F3-00

(replaces part #
90109-06797-00)

BOLT$8.49$6.623 In-Stock
323X-83922-01-00

(replaces part #
23X-83922-00-00)

LEVER 2$30.99$24.1710+ In-Stock
490201-08083-00WASHER, PLATE$10.49$8.1810+ In-Stock
595617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
697013-06022-00

(replaces part #
97003-06022-00)

BOLT (661)$1.40$1.203 In-Stock
792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
8214-82911-01-00HOLDER, LEVER 1$61.99$48.352 In-Stock
990109-061F3-00

(replaces part #
90109-06797-00)

BOLT$8.49$6.623 In-Stock
1023X-83912-02-00

(replaces part #
23X-83912-00-00)

LEVER 1$30.99$24.1710+ In-Stock
1190201-08083-00WASHER, PLATE$10.49$8.1810+ In-Stock
1295617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1397013-06022-00

(replaces part #
97003-06022-00)

BOLT (661)$1.40$1.203 In-Stock
1492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
152X6-83976-00-98SWITCH, HANDLE 1$25.99$21.31Usually ships in 7-10 business days
16437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
173M2-26281-00-00CAP, GRIP UPPER$51.99$40.55Usually ships in 7-10 business days
18437-26282-02-00CAP, GRIP LOWER$27.99$22.95Usually ships in 7-10 business days
1998580-05020-00SCREW, PAN HEAD$1.55$1.356 In-Stock
