1981 Yamaha PW50 YZinger Intake OEM Parts Diagram

Submodel PW50H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

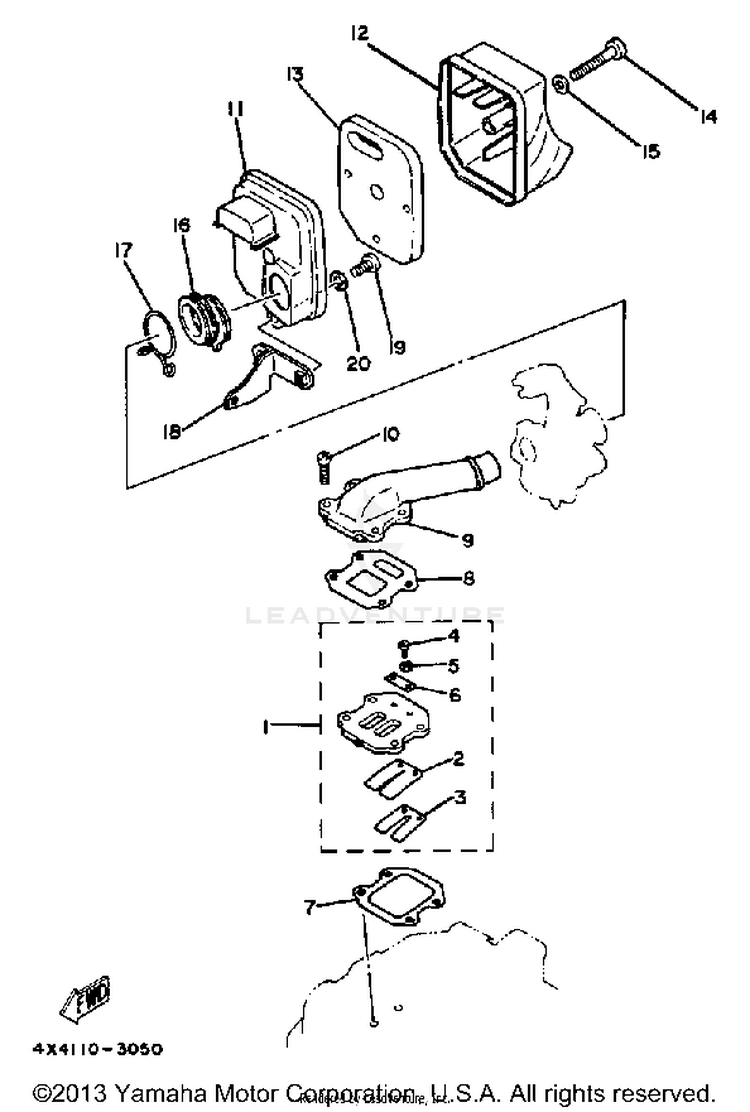

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13L5-13610-00-00REED VALVE ASSY$88.99$69.4110+ In-Stock
23L5-13613-00-00REED, VALVE$46.99$36.655 In-Stock
33L5-13616-00-00STOPPER, REED VALVE$10.99$9.01Usually ships in 7-10 business days
498580-03010-00SCREW, PAN HEAD$9.49$7.408 In-Stock
592990-03100-00WASHER, SPRING$9.49$7.4010+ In-Stock
63L5-13624-00-00PLATE, REED VALVE$7.49$5.841 In-Stock
73HK-13621-00-00GASKET, VALVE SEAT$22.99$17.9310+ In-Stock
83L5-13622-10-00GASKET, VALVE SEAT$31.99$24.957 In-Stock
93L5-13555-00-00MANIFOLD, INTAKE$71.99$56.15Usually ships in 7-10 business days
1098580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
114X4-14411-00-00CASE, AIR CLEANER 1$34.99$27.294 In-Stock
124X4-14412-00-00CAP, CLEANER CASE 1$30.99$24.1710+ In-Stock
134X4-14451-00-00ELEMENT, AIR CLEANER$8.99$7.0110+ In-Stock
1498580-06545-00SCREW, PAN HEAD (92503-06045-00$6.49$5.4910+ In-Stock
1590201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
164X4-14453-00-00JOINT, AIR CLEANER 1$25.99$20.2710+ In-Stock
1790467-20023-00CLIP$6.49$5.0610+ In-Stock
184X4-14493-01-00STAY 1$24.99$19.493 In-Stock
1998507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
2090201-06M08-00

(replaces part #
90201-06050-00)

WASHER, PLATE$2.55$2.197 In-Stock
