1981 Yamaha SR185 Cylinder Head OEM Parts Diagram

Submodel SR185H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

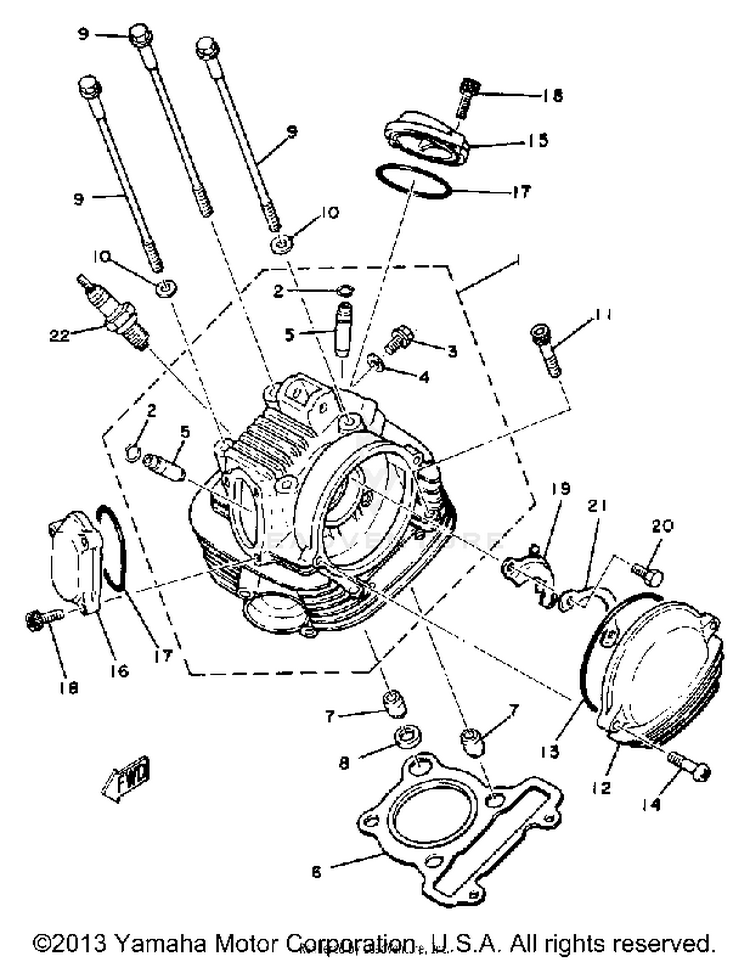

CYLINDER HEAD

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15H0-11110-00-00CYLINDER HEAD ASSEMBLY$299.99$257.09Usually ships in 7-10 business days
293440-10085-00CIRCLIP$9.49$7.4010+ In-Stock
390153-06029-00

(replaces part #
90153-06045-00)

SCREW, HEXAGON$9.49$7.40
490430-06014-00GASKET$8.99$7.0110+ In-Stock
55H0-11133-11-00

(replaces part #
5H0-11133-10-00)

GUIDE, INTAKE VALVE$74.99$58.492 In-Stock
61NU-11181-00-00GASKET, CYLINDER HEAD 1$50.99$39.778 In-Stock
799530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
890430-14131-00GASKET$9.49$7.4010+ In-Stock
990105-08160-00

(replaces part #
90105-08195-00)

BOLT, FLANGE$8.49$6.6210+ In-Stock
1090201-080L7-00WASHER, PLATE$4.05$3.4810+ In-Stock
1191317-08045-00

(replaces part #
91316-08045-00)

BOLT, HEX. SOCKET HEAD$9.49$7.405 In-Stock
125H0-11185-00-00CVR, CYLINDER HD SIDE 1$62.99$49.13Usually ships in 7-10 business days
1393211-05471-00O-RING$16.49$12.8610+ In-Stock
1498580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
155H0-11186-00-00COVER, CYLINDER.HEAD 2$10.18$8.35Usually ships in 7-10 business days
165H0-11187-00-00COVER, CYLINDER.HEAD 3$11.46$9.40Usually ships in 7-10 business days
1793210-57634-00O-RING$15.49$12.0810+ In-Stock
1891317-06020-00

(replaces part #
91316-06020-00)

BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
195H0-1111F-00-00PLATE$26.99$22.13Usually ships in 7-10 business days
2097013-06012-00BOLT$6.49$5.0610+ In-Stock
2190215-06184-00WASHER, LOCK$11.49$8.968 In-Stock
22D7E-A0000-00-00

(replaces part #
NGK-D7EA0-00-00)

D7EA NGK SPLUG 10P$4.95$4.267 In-Stock
