1981 Yamaha TT250 Side Cover - Tool OEM Parts Diagram

Submodel TT250H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SIDE COVER - TOOL

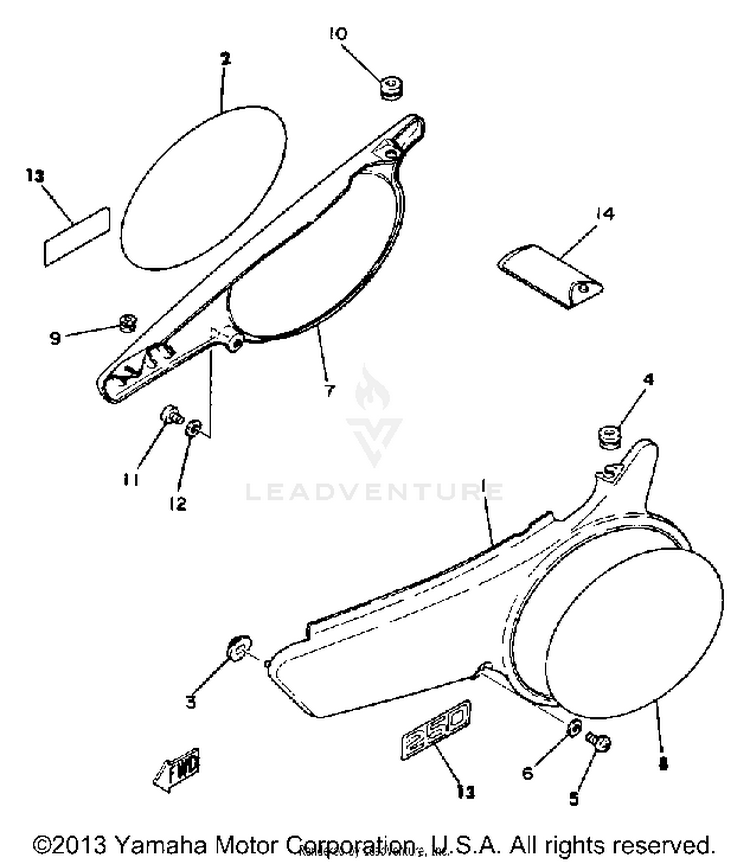

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13Y0-21711-00-00COVER, SIDE 1 | WHITE$50.99$39.77Not Shipping
2322-23395-00-00EMBLEM$13.72$10.70Not Shipping
390480-01401-00GROMMET (41Y)$9.49$7.4010+ In-Stock
490480-12053-00GROMMET$8.49$6.6210+ In-Stock
597885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
690201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
73Y0-21721-00-00COVER, SIDE 2 | WHITE$89.99$70.19Usually ships in 7-10 business days
8322-23395-00-00EMBLEM$13.72$10.70Not Shipping
990480-08264-00GROMMET$9.49$7.406 In-Stock
1090480-12053-00GROMMET$8.49$6.6210+ In-Stock
1197885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
1290201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
132X4-21737-00-00EMBLEM$3.57$3.21Not Shipping
145X5-28100-00-00TOOL KIT$29.99$24.59Not Shipping
