1981 Yamaha XS1100 Handlebar Cable OEM Parts Diagram

Submodel XS1100LH - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLEBAR CABLE

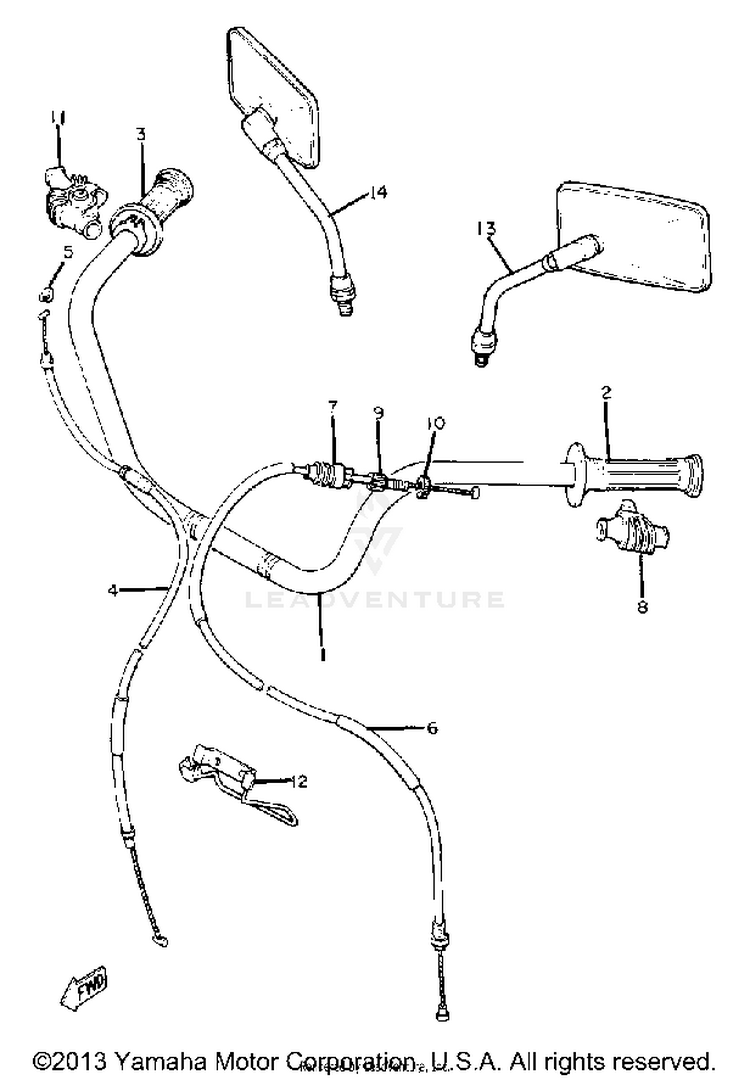

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14H3-26111-00-00HANDLEBAR$70.93$55.33Usually ships in 7-10 business days
22H7-26241-01-00

(replaces part #
2H7-26241-00-00)

GRIP LH$12.99$10.65Usually ships in 7-10 business days
32H7-26240-01-00

(replaces part #
2H7-26240-00-00)

GRIP ASSY$19.99$16.39Usually ships in 7-10 business days
43H3-26311-00-00CABLE, THROTTLE 1$33.99$27.87Usually ships in 7-10 business days
5584-26393-02-00HOLDER, WIRE GUIDE$7.49$6.74Usually ships in 7-10 business days
63H3-26335-00-00CABLE, CLUTCH$36.99$30.33Usually ships in 7-10 business days
71E6-26342-00-00BOOT, CABLE$33.99$26.514 In-Stock
81E6-26372-00-00COVER, HANDLE LEVER 1$25.99$20.272 In-Stock
990123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
1090179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
111T5-26372-00-00COVER, HANDLE LEVER 1$22.99$17.934 In-Stock
124W1-26399-00-00GUIDE, CABLE$11.02$9.04Usually ships in 7-10 business days
134W5-26290-10-00MIRROR ASSEMBLY LH (L.H)$54.99$42.89Usually ships in 7-10 business days
144W5-26290-00-00MIRROR ASSEMBLY RH (R.H)$54.99$42.89Usually ships in 7-10 business days
