1981 Yamaha XT250 Valve OEM Parts Diagram

Submodel XT250 - XT250H_198 - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

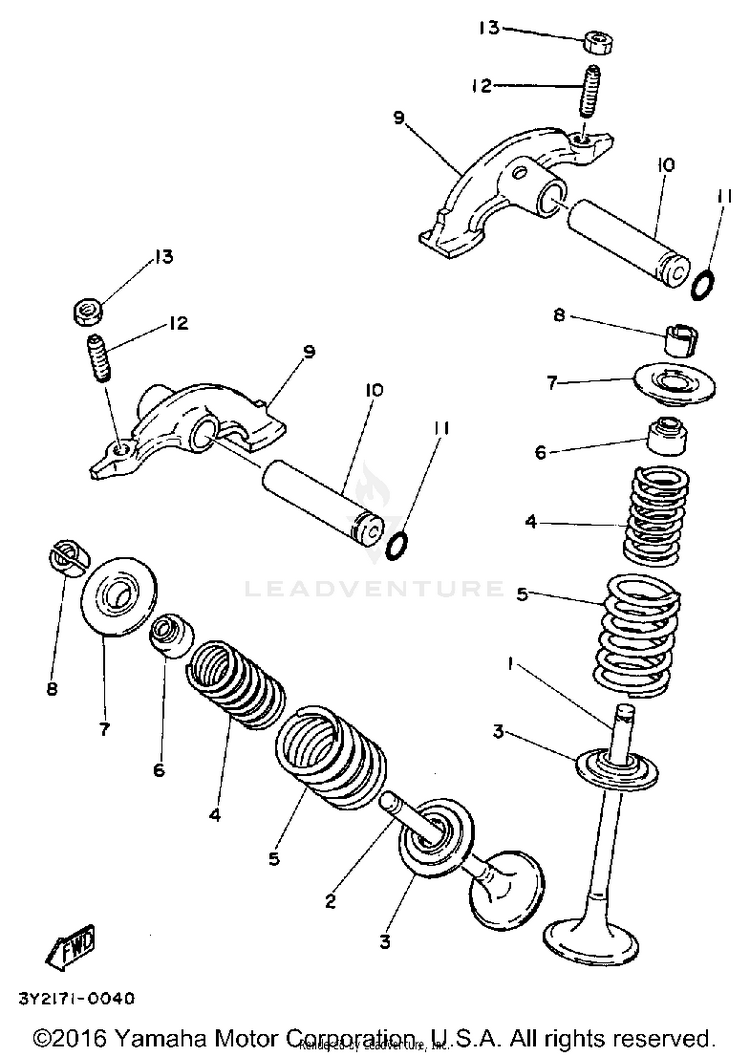

VALVE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13Y1-12111-01-00VALVE, INTAKE$92.99$72.53Usually ships in 7-10 business days
23Y1-12121-01-00VALVE, EXHAUST$104.99$81.89Usually ships in 7-10 business days
33Y1-12116-00-00SEAT, VALVE SPRING$17.99$14.037 In-Stock
43Y1-12113-01-00SPRING, VALVE INNER$17.99$14.75Usually ships in 7-10 business days
53Y1-12114-01-00SPRING, VALVE OUTER$39.99$32.79Usually ships in 7-10 business days
61J7-12119-01-00SEAL, VALVE STEM$22.99$17.9310+ In-Stock
73Y1-12117-01-00RETAINER, VALVE SPRING$18.99$14.816 In-Stock
81J7-12118-00-00LOCK, VALVE SPRING RETAINER$8.49$6.6210+ In-Stock
999999-01443-00ARM, VALVE ROCKER$187.99$146.63Usually ships in 7-10 business days
103Y1-12156-00-00SHAFT, ROCKER 2$71.99$56.15Usually ships in 7-10 business days
1193210-09350-00O-RING$7.49$5.8410+ In-Stock
122NX-12159-00-00

(replaces part #
3Y1-12159-00-00)

SCREW, VALVE ADJUSTING$12.99$10.1310+ In-Stock
1390170-06128-00NUT$9.49$7.404 In-Stock
