1981 Yamaha YT125 TRI-MOTO Front Fork Yt125h OEM Parts Diagram

Submodel YT125H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

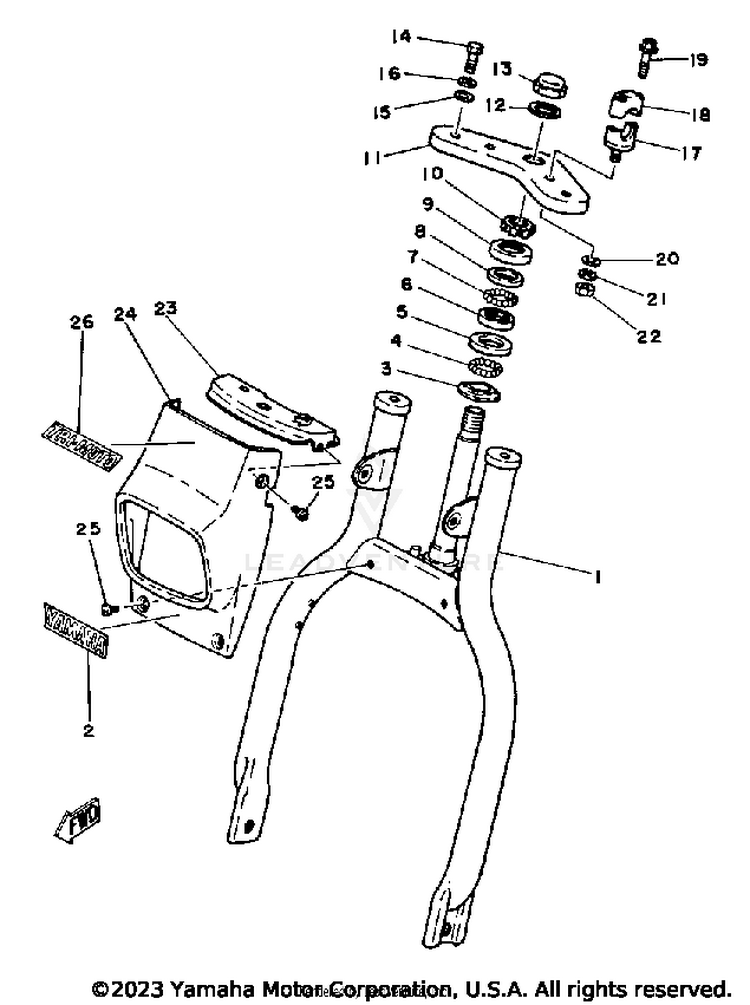

FRONT FORK YT125H

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14U3-23101-00-26FRONT FORK ASSEMBLY | COMP. YEL$294.99$230.09Usually ships in 7-10 business days
299244-00100-00

(replaces part #
4U3-23395-00-00)

EMBLEM, YAMAHA$22.99$17.932 In-Stock
3B6E-23411-00-00

(replaces part #
156-23411-00-00)

. .RACE, BALL 1$9.49$7.406 In-Stock
493501-04011-00BALL$9.49$7.4010+ In-Stock
5B6E-23412-00-00

(replaces part #
156-23412-00-00)

RACE, BALL 2$14.49$11.3010+ In-Stock
6BP2-23412-00-00

(replaces part #
22F-23412-01-00)

RACE, BALL 2$8.49$6.626 In-Stock
793503-16003-00

(replaces part #
93503-16010-00)

BALL$2.90$2.4910+ In-Stock
8BP2-23411-00-00

(replaces part #
22F-23411-01-00)

RACE, BALL 1$12.49$9.747 In-Stock
9122-23416-00-00COVER, BALL RACE 2$8.49$6.625 In-Stock
1090179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
113X3-23435-00-00CROWN, HANDLE$30.48$24.99Usually ships in 7-10 business days
1290201-252A5-00WASHER, PLATE$4.40$3.96Usually ships in 7-10 business days
133X3-23453-00-00NUT, FITTING 1$12.49$10.24Usually ships in 7-10 business days
1497017-10025-00

(replaces part #
97011-10025-00)

BOLT$9.49$8.54Usually ships in 7-10 business days
1592990-10600-00WASHER, PLATE$3.10$2.6710+ In-Stock
1692990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
17462-23442-00-98HOLDER, HANDLE LWR$15.99$13.11Usually ships in 7-10 business days
18422-23441-00-98UNAVAILABLE IN PRICE BOOK (122-$0.00$0.00Not Shipping
1995817-06035-00

(replaces part #
95811-06035-00)

BOLT, FLANGE$8.49$6.6210+ In-Stock
2092990-10600-00WASHER, PLATE$3.10$2.6710+ In-Stock
2192990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
2295380-10600-00NUT$2.80$2.413 In-Stock
234U3-23317-00-98HOLDER,CABLE | LOW GLOSS BK$34.99$28.69Usually ships in 7-10 business days
244U3-23391-00-00PANEL,FRONT | COMP. YEL$29.99$24.59Not Shipping
2598980-06016-00

(replaces part #
98903-06016-00)

SCREW, BIND$9.49$7.404 In-Stock
264U3-21785-00-00EMBLEM 5$6.74$6.07Not Shipping
