1981 Yamaha YZ100 C - D - I - Magneto OEM Parts Diagram

Submodel YZ100H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

C - D - I - MAGNETO

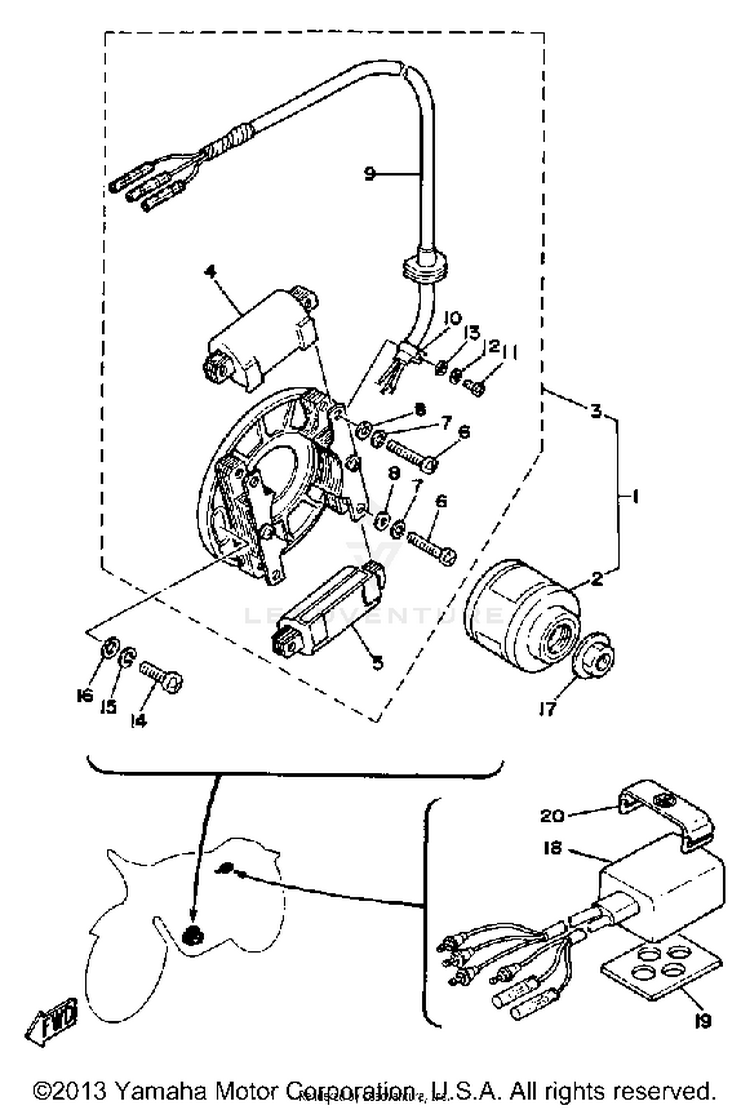

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12X6-85500-11-00CDI MAGNETO ASSEMBLY$459.99$358.79Usually ships in 7-10 business days
22X6-85550-10-00ROTOR ASSEMBLY$187.99$146.63Usually ships in 7-10 business days
32X6-85510-11-00STATOR ASSEMBLY$330.99$258.17Usually ships in 7-10 business days
43R4-85520-11-00

(replaces part #
2X6-85566-10-00)

COIL, CHARGE$360.99$281.57Usually ships in 7-10 business days
52X6-85567-10-00COIL, CHARGE 2$259.07$202.07Usually ships in 7-10 business days
698517-05030-00

(replaces part #
98501-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
792990-05100-00WASHER, SPRING-$0.8310+ In-Stock
892990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
92X6-85515-10-00LEAD WIRE ASSEMBLY$56.99$44.45Not Shipping
10109-81328-11-00CLAMP$9.49$8.54Not Shipping
1198580-04008-00SCREW, PAN HEAD$6.49$5.0610+ In-Stock
1292990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1392990-04600-00

(replaces part #
92901-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
1498580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1692990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
1790179-10257-00NUT, SPECL SHAPE$9.49$8.54Not Shipping
182X6-85540-10-00CDI UNIT ASSEMBLY$203.99$159.11Not Shipping
193RB-85547-01-00

(replaces part #
2K7-85547-00-00)

DAMPER$9.49$8.54Not Shipping
2021V-21376-00-00BAND, TOOL$7.49$5.845 In-Stock
