1981 Yamaha YZ125 Side Cover OEM Parts Diagram

Submodel YZ125H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SIDE COVER

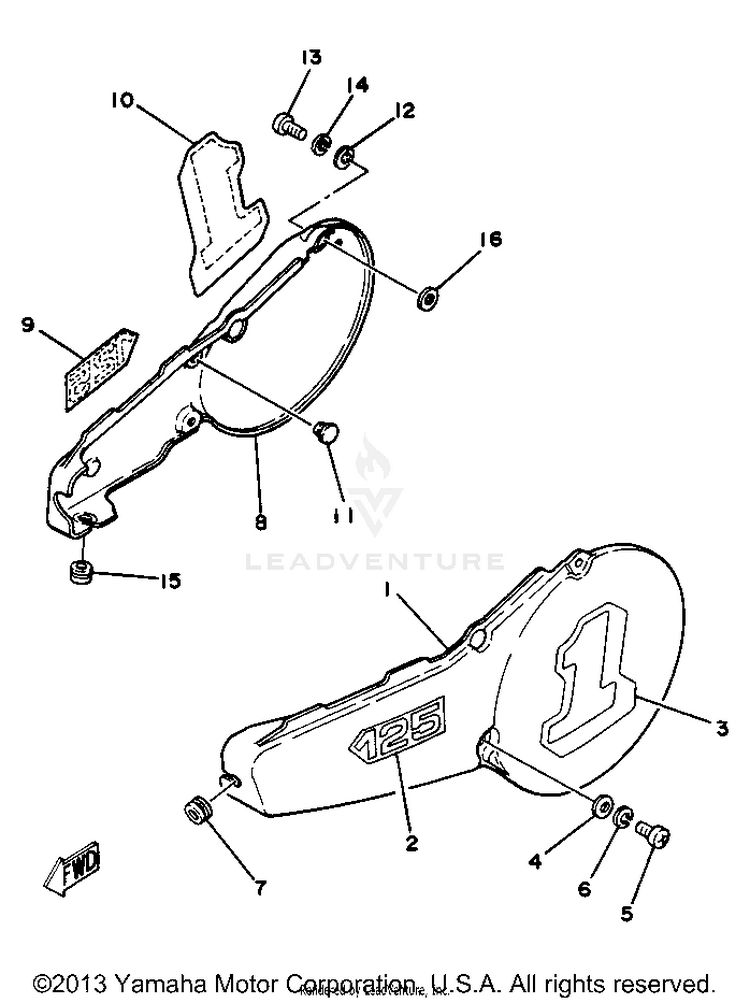

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13R3-21711-01-98COVER, SIDE 1 | LOW GLOSS BLK/YELLOW$81.99$63.95Not Shipping
23R3-21737-00-00EMBLEM$7.52$6.77Not Shipping
33R2-21782-00-00EMBLEM 2$9.49$8.54Not Shipping
490201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
598507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
692995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
790480-12053-00GROMMET$8.49$6.6210+ In-Stock
83R3-21721-02-98COVER, SIDE 2 (R.H.)$81.99$63.95Not Shipping
93R3-21737-00-00EMBLEM$7.52$6.77Not Shipping
103R2-21782-00-00EMBLEM 2$9.49$8.54Not Shipping
1122W-24181-00-00DAMPER, LOCATING 1$7.49$5.8410+ In-Stock
1290201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
1398507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1590480-12053-00GROMMET$8.49$6.6210+ In-Stock
1692990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
