HANDLEBAR CABLE YZ80H J

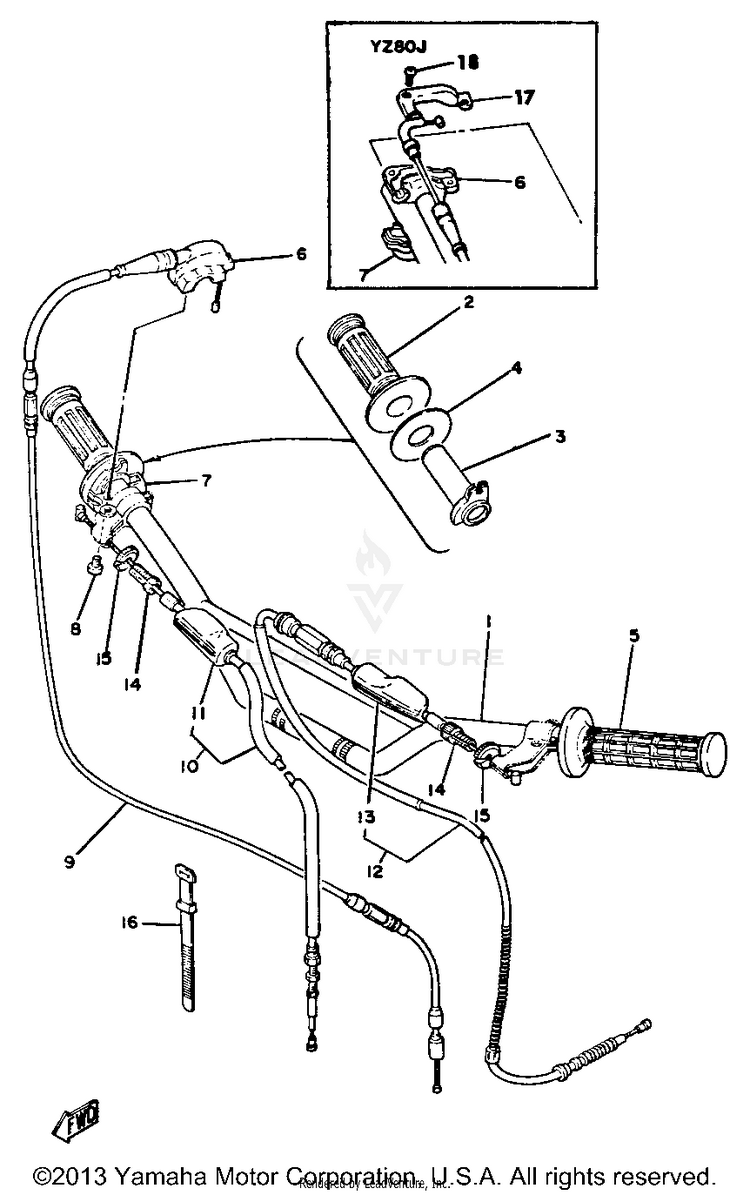

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-90157-05M19-00

(replaces part #
98586-05016-00)

SCREW, PAN HEAD$3.75$3.224 In-Stock
-5X2-26281-00-00CAP, GRIP UPPER$41.99$32.7510+ In-Stock
-1LX-26242-01-00GRIP (RIGHT)$37.99$29.636 In-Stock
-4ES-26111-10-00HANDLEBAR$111.99$87.35Not Shipping
-5X2-26341-00-00CABLE, BRAKE$49.99$40.99Usually ships in 7-10 business days
-5X2-26311-00-00CABLE, THROTTLE 1$40.99$33.61Usually ships in 7-10 business days
15X2-26111-00-00HANDLEBAR$61.69$48.12Not Shipping
2583-26242-00-00GRIP RH (R.H.)$39.99$31.194 In-Stock
322W-26243-00-00

(replaces part #
322-26243-00-00)

TUBE, THROTTLE GUIDE$33.99$26.51
41W1-26249-00-00RING, LEAF$6.99$6.29Not Shipping
51LX-26241-01-00

(replaces part #
4V4-26241-01-00)

GRIP (LEFT)$36.99$28.854 In-Stock
6322-26281-00-98CAP, GRIP UPPER$28.99$22.61Not Shipping
7322-26282-00-00CAP, GRIP UNDER$31.99$24.954 In-Stock
897885-05016-00

(replaces part #
98580-05016-00)

SCREW, PAN HEAD$4.70$4.049 In-Stock
94V1-26311-00-00CABLE, THROTTLE 1$34.99$28.69Not Shipping
104V1-26341-00-00CABLE, BRAKE$17.49$14.34Usually ships in 7-10 business days
11498-26372-00-00

(replaces part #
382-26372-01-00)

COVER, HANDLE LEVER 1$34.99$27.296 In-Stock
125X2-26335-00-00CABLE, CLUTCH$44.99$36.89Usually ships in 7-10 business days
13498-26372-00-00

(replaces part #
382-26372-01-00)

COVER, HANDLE LEVER 1$34.99$27.296 In-Stock
1490123-08002-00

(replaces part #
90123-08013-00)

BOLT$10.49$8.1810+ In-Stock
1590179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
16437-83936-11-00BAND, SWITCH CORD$5.00$4.3010+ In-Stock
175X2-2628H-01-00CAP, WIRE$30.99$24.1710+ In-Stock
1898707-05016-00

(replaces part #
98606-05015-00)

SCREW, FLAT HEAD$7.99$6.233 In-Stock
