1982 Yamaha DT100 Crankcase Cover OEM Parts Diagram

Submodel DT100J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE COVER

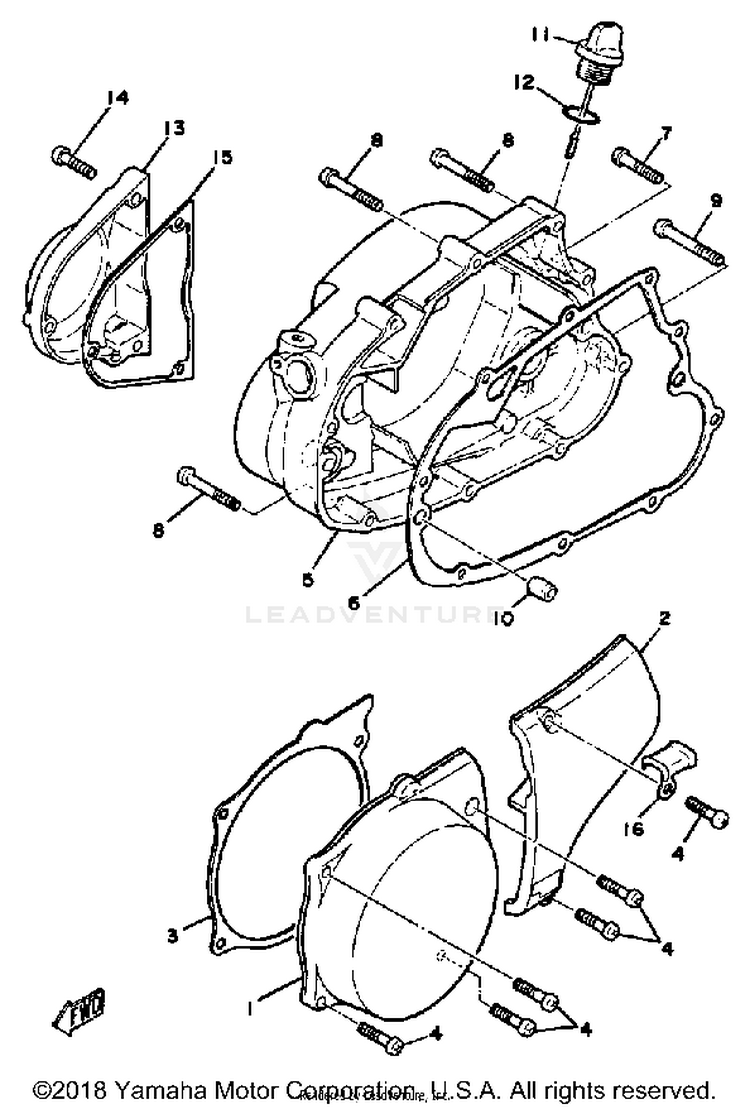

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11X0-15411-00-00COVER, CRANKCASE L$72.99$56.93Usually ships in 7-10 business days
2401-15421-00-00COVER, CRANKCASE R$54.99$42.89Not Shipping
33UL-15455-00-00

(replaces part #
1X0-15455-00-00)

GASKET 1$24.99$19.491 In-Stock
498580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
5401-15431-00-00COVER, CRANKCASE 3$166.99$130.25Usually ships in 7-10 business days
63UL-15451-00-00

(replaces part #
401-15451-00-00)

GASKET, CRANKCASE COVER 1$22.99$17.935 In-Stock
797885-06030-00

(replaces part #
98580-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
898580-06040-00SCREW, PAN HEAD$9.49$7.408 In-Stock
998580-06545-00SCREW, PAN HEAD (92503-06045-00$6.49$5.4910+ In-Stock
1099530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
1118G-15362-00-00PLUG, OIL LEVEL$28.99$22.614 In-Stock
1293210-21190-00O-RING$8.49$6.6210+ In-Stock
131X0-15416-00-00COVER, OIL PUMP$42.99$35.25Not Shipping
1498517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
153UL-15456-01-00

(replaces part #
3UL-15456-00-00)

GASKET, OIL PUMP COVER 1$12.99$10.131 In-Stock
1690461-10016-00CLAMP$7.99$7.19Not Shipping
