1982 Yamaha IT465 Air Filter OEM Parts Diagram

Submodel IT465J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

AIR FILTER

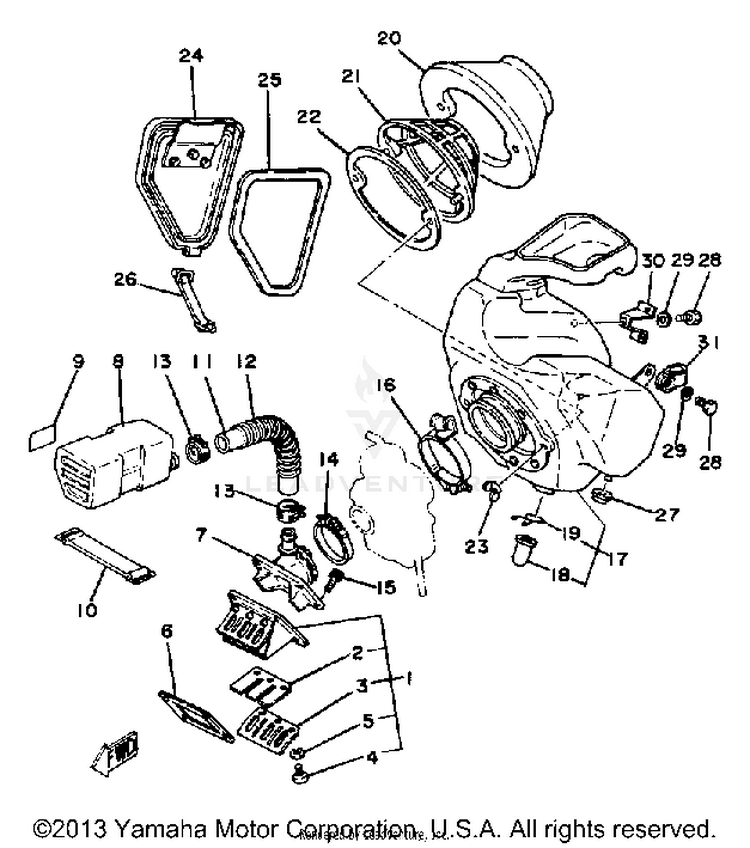

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13R5-13610-00-00REED VALVE ASSEMBLY$213.17$166.27Not Shipping
23R5-13613-00-00REED, VALVE$49.99$38.993 In-Stock
32X5-13616-00-00STOPPER, REED VALVE$5.08$3.96Not Shipping
498580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
592990-03100-00WASHER, SPRING$9.49$7.4010+ In-Stock
680L-13621-01-00GASKET, VALVE SEAT$11.99$9.357 In-Stock
74V6-13565-00-00JOINT, CARBURETOR$57.09$44.53Not Shipping
84V6-13581-00-00CHAMBER, AIR$22.32$18.30Not Shipping
94V3-1441K-00-00EMBLEM$3.50$3.15Not Shipping
101E6-82131-00-00BAND, BATTERY$30.99$24.174 In-Stock
1190445-24610-00HOSE$6.71$6.04Not Shipping
1290501-10658-00SPRING, COMPRESSION$5.99$5.39Not Shipping
1390467-23177-00

(replaces part #
90467-23059-00)

CLIP$4.60$3.966 In-Stock
1490460-51109-00CLAMP, HOSE$12.99$10.13Not Shipping
1591317-06020-00

(replaces part #
91316-06020-00)

BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
1690460-68231-00CLAMP, HOSE$26.99$21.05Not Shipping
174V5-W1441-00-00AIR CLEANER CASE$119.99$93.59Not Shipping
181W4-14457-00-00SEAL$19.49$15.98Not Shipping
1990467-20M15-00

(replaces part #
90467-20030-00)

CLIP$6.99$5.453 In-Stock
203R4-W1442-01-00ELEMENT, AIR CLNR$77.99$60.83Not Shipping
213R4-14458-00-00GUIDE, ELEMENT$19.49$15.20Not Shipping
224V4-14459-00-00HOLDER, GUIDE$6.04$4.71Not Shipping
2390175-06008-00NUT, WING$2.75$2.368 In-Stock
244V5-14412-00-00CAP, CLEANER CASE 1$43.80$35.92Not Shipping
2539W-14452-00-00

(replaces part #
5X5-14452-00-00)

SEAL$10.49$8.18Not Shipping
264V5-14455-00-00BAND$9.49$8.54Not Shipping
2790480-13014-00

(replaces part #
90480-13398-00)

GROMMET$9.49$7.4010+ In-Stock
2897D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
2992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
304V4-14484-00-00PLATE, CLNR CS FTNG$8.49$7.64Not Shipping
314V4-14499-00-00STAY 2$9.20$8.28Not Shipping
