1982 Yamaha XT200 Handlebar Cable OEM Parts Diagram

Submodel XT200J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLEBAR CABLE

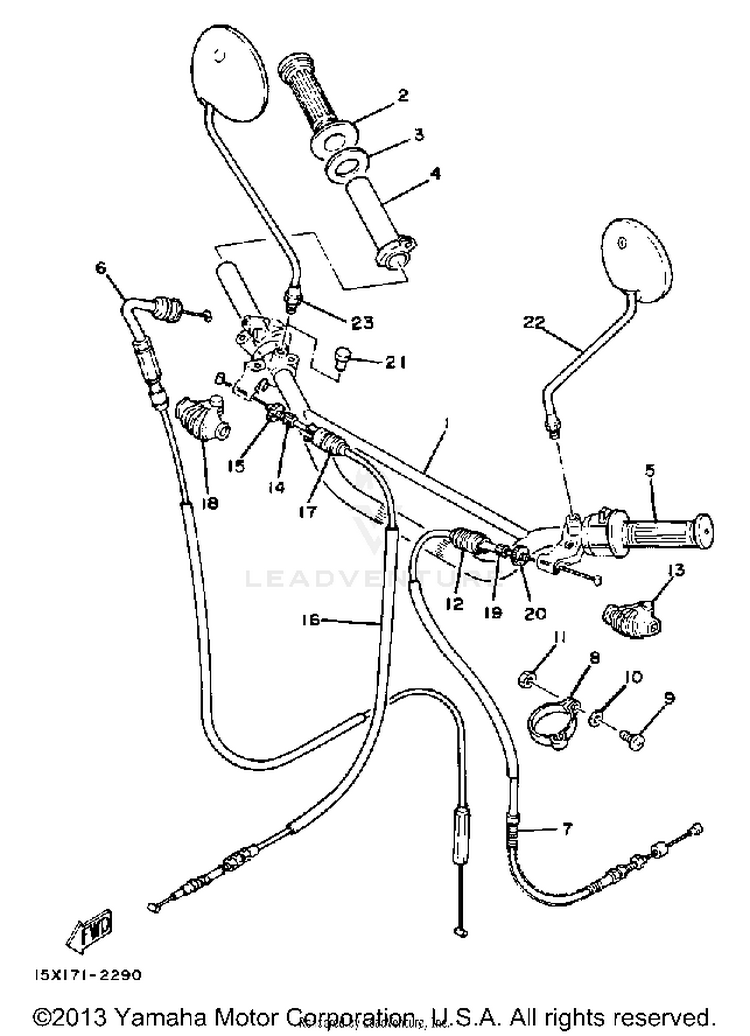

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13G7-26111-00-00HANDLEBAR$120.99$94.37Usually ships in 7-10 business days
21A0-26242-01-00GRIP RH (R.H.)$43.99$36.072 In-Stock
31M1-26249-01-00RING, LEAF$8.49$6.628 In-Stock
4434-26243-00-00TUBE, THROTTLE GUIDE$54.99$42.8910+ In-Stock
51E6-26241-00-00GRIP LH$37.99$29.633 In-Stock
615A-26311-00-00CABLE, THROTTLE 1$80.99$63.17Usually ships in 7-10 business days
715A-26335-00-00CABLE, CLUTCH$28.99$23.77Not Shipping
83Y1-26397-00-00BAND$7.99$7.19Not Shipping
997885-05016-00

(replaces part #
98580-05016-00)

SCREW, PAN HEAD$4.70$4.049 In-Stock
1092990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
1195380-05600-00NUT$9.49$8.54Usually ships in 7-10 business days
121E6-26342-00-00BOOT, CABLE$33.99$26.514 In-Stock
131E6-26372-00-00COVER, HANDLE LEVER 1$25.99$20.272 In-Stock
1490123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
1590179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
1615A-26341-00-00CABLE, BRAKE$52.99$41.33Not Shipping
171E6-26342-00-00BOOT, CABLE$33.99$26.514 In-Stock
181E6-26372-00-00COVER, HANDLE LEVER 1$25.99$20.272 In-Stock
1990123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
2090179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
2190338-09012-00PLUG$10.49$8.186 In-Stock
225Y1-26290-11-00

(replaces part #
5Y1-26290-10-00)

MIRROR ASSY., 2 | STD$82.99$64.732 In-Stock
233Y1-26290-00-00BACK MIRROR ASSY (R.H) | ALTERNATE PART$58.99$46.014 In-Stock
