1982 Yamaha YZ100 Front Fender - Rear Fender OEM Parts Diagram

Submodel YZ100J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

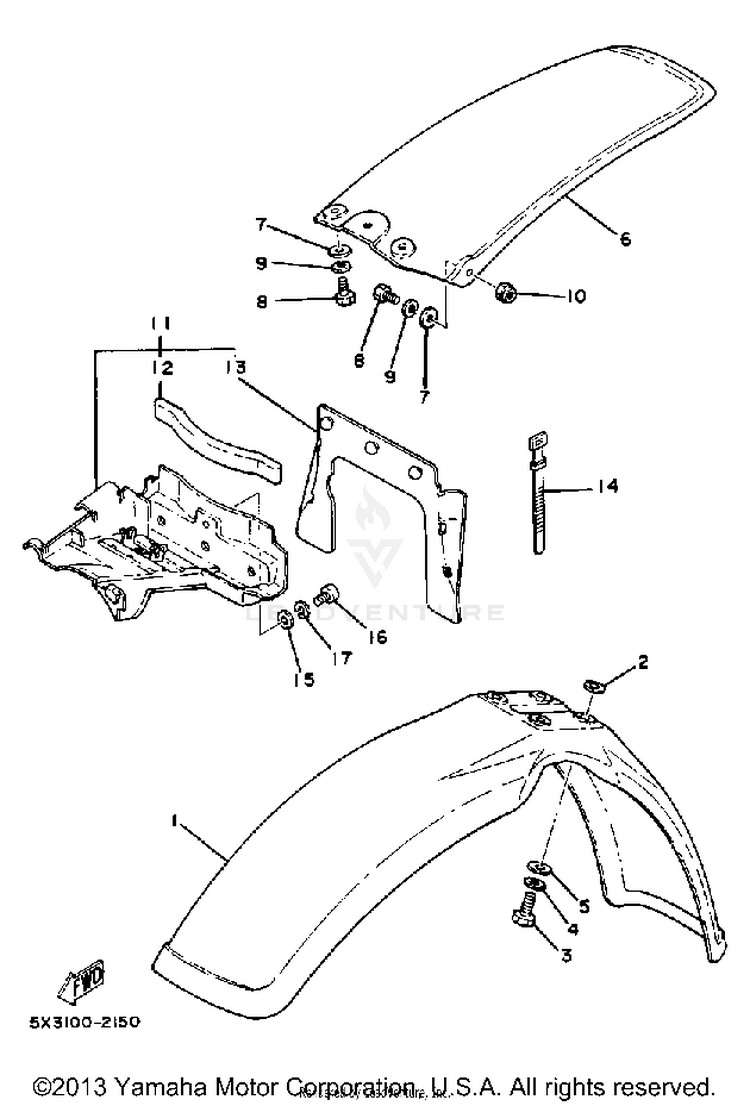

FRONT FENDER - REAR FENDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15X6-21511-01-00FENDER, FRONT$46.99$36.654 In-Stock
290201-06020-00

(replaces part #
90201-065F3-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
397024-06020-00

(replaces part #
97023-06020-00)

BOLT$9.49$7.4010+ In-Stock
492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
590209-06187-00WASHER$9.49$7.4010+ In-Stock
63R3-21611-01-00FENDER, REAR$37.99$29.63Not Shipping
790201-06571-00WASHER, PLATE$10.49$8.1810+ In-Stock
897D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1095617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
115X3-21620-00-00GUARD, MUD$48.61$39.86Not Shipping
12565-21746-00-00DAMPER$13.72$11.25Not Shipping
135X3-21642-00-00GUARD, FLAP$16.98$13.92Not Shipping
14437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
1590201-06571-00WASHER, PLATE$10.49$8.1810+ In-Stock
1698507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
