1982 Yamaha YZ125 Water Pump OEM Parts Diagram

Submodel YZ125J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

WATER PUMP

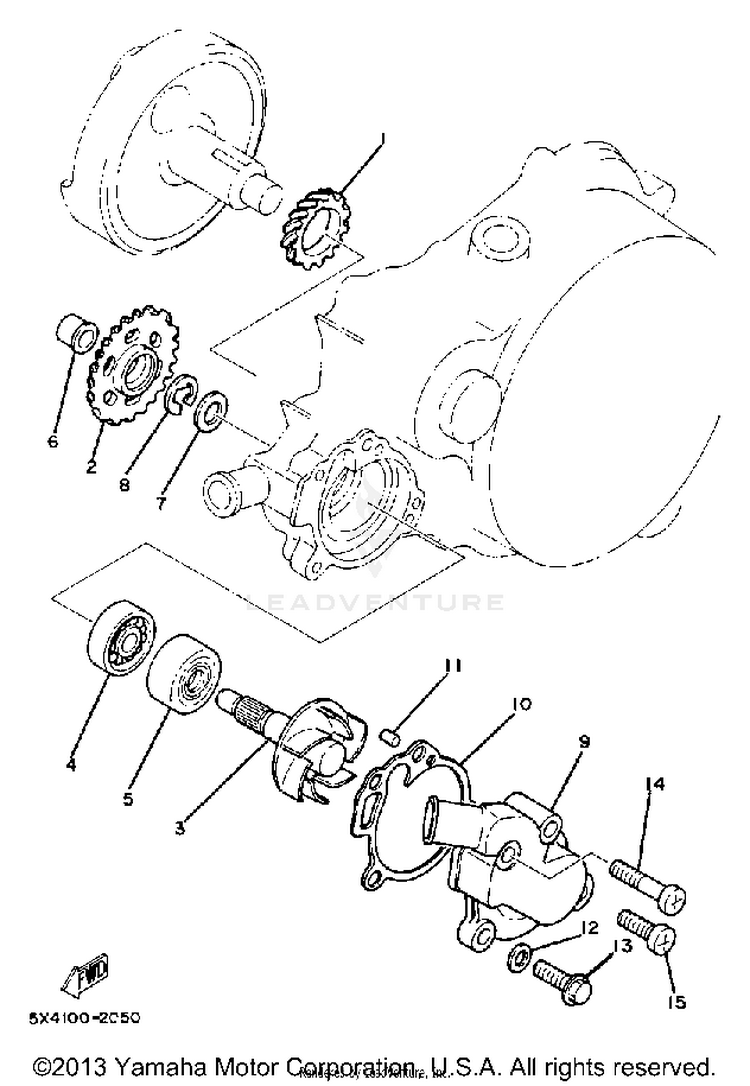

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15X4-12436-00-00GEAR, DRIVE (20T)$82.99$64.73Usually ships in 7-10 business days
25X4-12459-00-00GEAR, IMPELLER SHAF (31T)$63.99$49.91Usually ships in 7-10 business days
34V2-12450-00-00IMPELLER SHAFT ASSEMBLY$55.99$43.67Not Shipping
493306-00105-00BEARING$33.99$26.5110+ In-Stock
593103-12119-00OIL SEAL$33.99$26.512 In-Stock
690381-08002-00BUSH, SOLID$12.49$9.744 In-Stock
790201-10614-00WASHER, PLATE$9.49$7.402 In-Stock
899001-08600-00CIRCLIP$9.49$7.405 In-Stock
95X4-12422-00-00COVER, HOUSING$56.08$43.74Usually ships in 7-10 business days
105X4-12428-01-00

(replaces part #
5X4-12428-00-00)

GASKET,HSNG CVR2$8.99$8.09Not Shipping
1193604-10011-00PIN, DOWEL$8.49$6.6210+ In-Stock
1290430-06166-00GASKET$4.05$3.4810+ In-Stock
1395817-06020-00

(replaces part #
95826-06020-00)

BOLT, FLANGE$3.50$3.0110+ In-Stock
1498517-06030-00

(replaces part #
98516-06030-00)

SCREW, PAN HEAD$3.45$2.97
1598517-06020-00

(replaces part #
98516-06020-00)

SCREW,PAN HEAD$2.35$2.0210+ In-Stock
