1983 Yamaha IT250 Seat OEM Parts Diagram

Submodel IT250K - 1983

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

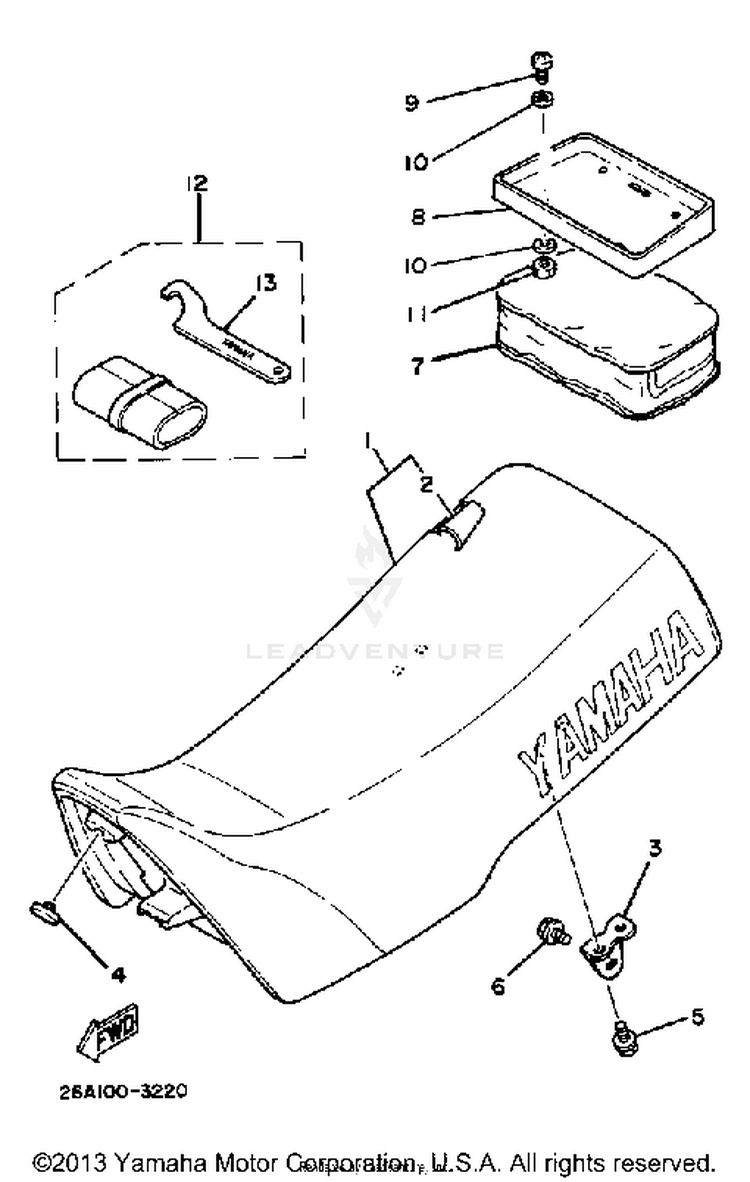

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
126A-W2473-00-00SEMI-DBL-SEAT ASSEMBLY$126.99$99.05Not Shipping
226A-24731-00-00COVER, DOUBLE SEAT$94.99$74.09Not Shipping
339W-24738-00-00BRACKET, SEAT$20.99$17.21Not Shipping
422W-24741-00-00PAD, SEAT$9.49$7.4010+ In-Stock
595817-06012-00

(replaces part #
95811-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
690119-06152-00

(replaces part #
90119-06056-00)

BOLT, WITH WASHER$3.55$3.0510+ In-Stock
74V5-24850-00-00CARRIER BOX ASSEMBLY$161.99$126.35Not Shipping
84V5-24833-00-00BRACKET, CARRIER 2$51.99$40.55Not Shipping
998580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1090201-06571-00WASHER, PLATE$10.49$8.1810+ In-Stock
1195617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
121LN-W2810-01-00

(replaces part #
26A-28100-00-00)

TOOL KIT (48Y-28100-00-00)$130.99$102.17Not Shipping
131HX-28135-00-00SPANNER, SPECIAL$41.99$34.43Not Shipping
