1983 Yamaha IT490 Cylinder OEM Parts Diagram

Submodel IT490K - 1983

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

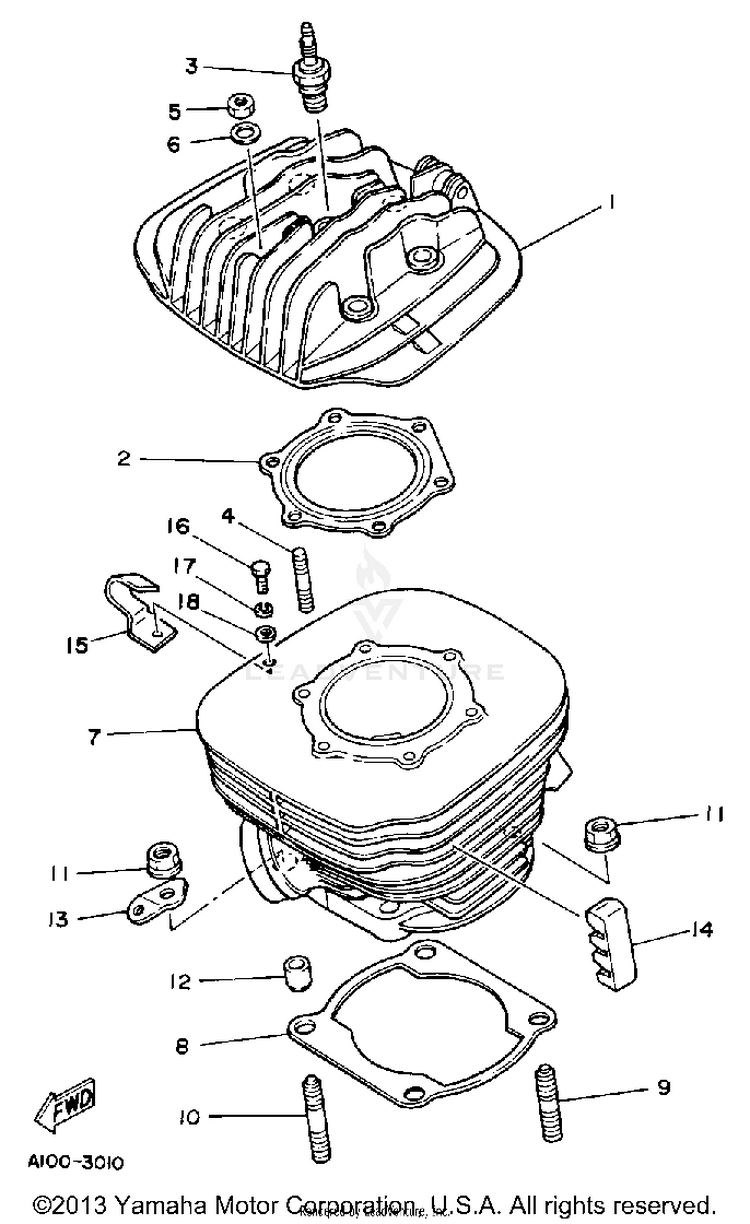

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
126A-11111-00-00HEAD, CYLINDER 1$139.99$109.19Not Shipping
25X6-11181-00-00GASKET, CYLINDER HEAD 1$33.99$29.04Not Shipping
3BR8-ES000-00-00

(replaces part #
NGK-B8ES0-00-00)

BR8ES NGK SCREW TOP | U.R. LM$4.45$4.2410+ In-Stock
490116-08394-00BOLT, STUD$5.49$4.2810+ In-Stock
595333-08600-00NUT$3.80$3.4710+ In-Stock
690201-08649-00WASHER, PLATE$10.49$8.1810+ In-Stock
726A-11311-00-00CYLINDER 1$634.99$540.38Usually ships in 7-10 business days
840T-11351-01-00

(replaces part #
40T-11351-00-00)

GASKETCYLINDER$24.99$19.494 In-Stock
990116-12315-00BOLT, STUD$8.49$7.64Not Shipping
1090116-12316-00BOLT, STUD$8.49$7.64Not Shipping
1195704-10500-00

(replaces part #
95701-10500-00)

NUT, WITH WASHER-$2.285 In-Stock
1291815-16017-00

(replaces part #
91810-17016-00)

PIN, DOWEL$9.49$7.404 In-Stock
133R5-14619-00-00HOOK, SPRING$3.00$2.58Not Shipping
143R6-11162-00-00ABSORBER 2$22.99$17.9310+ In-Stock
1526A-1131E-00-00HOLDER 1$15.49$12.70Not Shipping
1697017-06014-00

(replaces part #
97301-06014-00)

BOLT$9.49$7.4010+ In-Stock
1792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1890201-063J2-00WASHER, PLATE$6.49$5.0610+ In-Stock
