1983 Yamaha PW80 YZinger Handlebar - Cable OEM Parts Diagram

Submodel PW80K - 1983

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

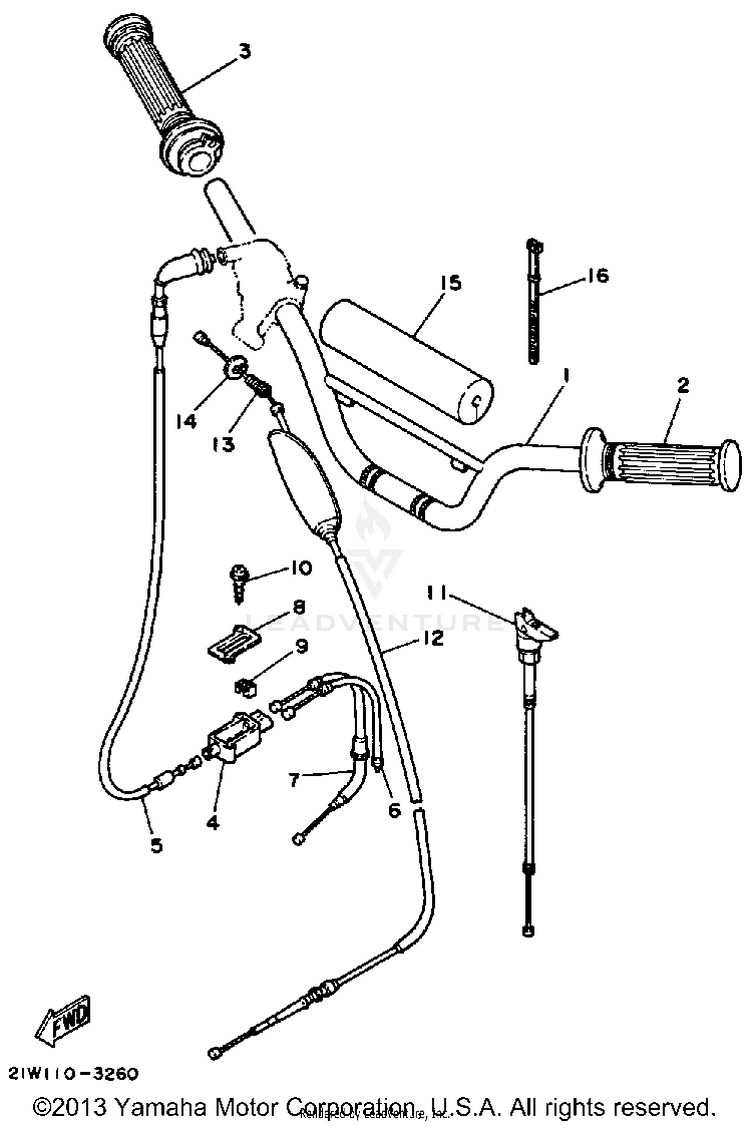

HANDLEBAR - CABLE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
121W-26111-02-00HANDLEBAR$45.99$37.71Not Shipping
22N3-26241-01-00

(replaces part #
2N3-26241-00-00)

GRIP$8.49$6.626 In-Stock
321W-26240-01-00

(replaces part #
21W-26240-00-00)

Grip Assy$16.49$12.868 In-Stock
421W-26261-00-00CONNECTOR, CABLE$38.99$30.413 In-Stock
521W-26311-02-00

(replaces part #
21W-26311-00-00)

CABLE, THROTTLE 1$36.99$28.853 In-Stock
621W-26312-01-00

(replaces part #
21W-26312-00-00)

CABLE, THROTTLE 2$9.49$7.403 In-Stock
721W-26321-02-00

(replaces part #
21W-26321-00-00)

CABLE, PUMP$26.99$21.052 In-Stock
821W-26262-00-00CAP, CABLE CONNECTOR$33.99$26.514 In-Stock
921W-26263-00-00PIECE, CONNECTING$32.99$25.734 In-Stock
1090167-03004-00SCREW, TAPPING-$6.5310+ In-Stock
1121W-26331-00-00CABLE, STARTER 1$41.99$32.755 In-Stock
1221W-26341-01-00

(replaces part #
21W-26341-00-00)

CABLE, BRAKE$32.99$25.733 In-Stock
1390123-08002-00

(replaces part #
90123-08013-00)

BOLT$10.49$8.1810+ In-Stock
1490179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
1521W-26124-00-00PROTECTOR, HANDLEBAR$31.99$24.953 In-Stock
16437-83936-11-00BAND, SWITCH CORD$5.00$4.3010+ In-Stock
