1983 Yamaha XT250 Electrical - 2 OEM Parts Diagram

Submodel XT250KC - 1983

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

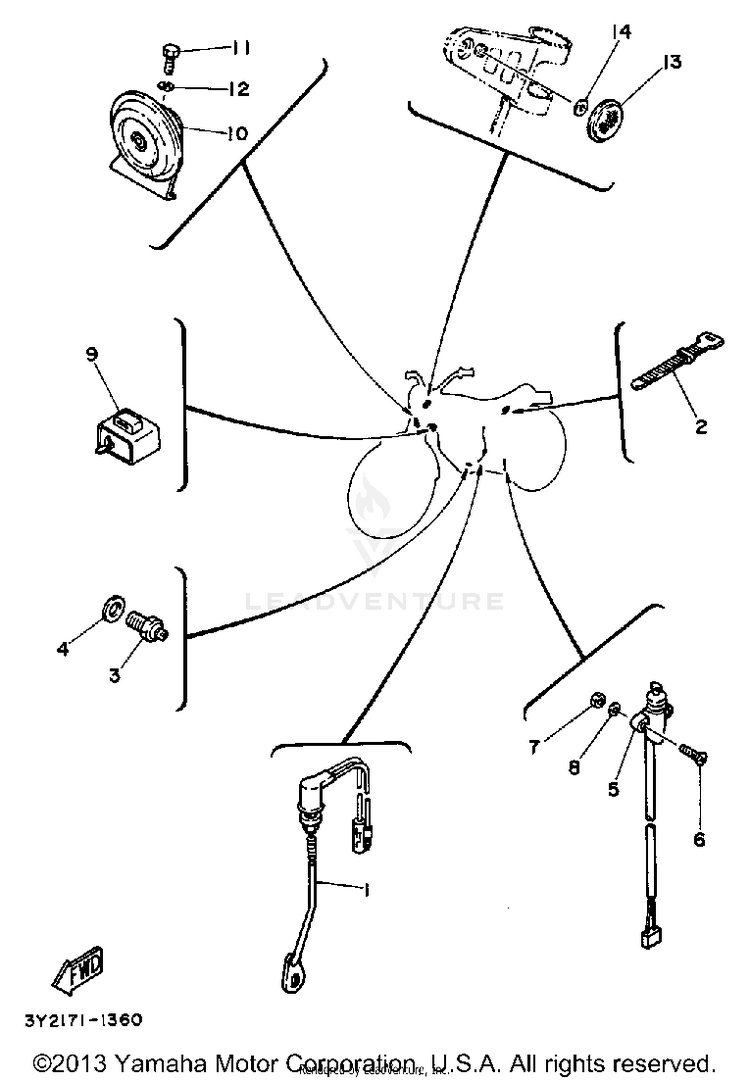

ELECTRICAL - 2

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13Y1-82530-02-00STOP SWITCH ASSEMBLY (3Y1-82530$49.99$40.99Usually ships in 7-10 business days
2437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
34GY-82540-10-00

(replaces part #
2H7-82540-00-00)

NEUTRAL SWITCH ASSY$41.99$32.754 In-Stock
490430-10171-00BOLT, UNION$3.45$2.9710+ In-Stock
533E-82566-00-00

(replaces part #
5H0-82566-00-00)

SWITCH, SIDE STAND$150.99$117.77Usually ships in 7-10 business days
698707-05020-00

(replaces part #
98706-05020-00)

SCREW, FLAT HEAD$8.49$7.64Usually ships in 7-10 business days
795380-05600-00NUT$9.49$8.54Usually ships in 7-10 business days
892990-05100-00WASHER, SPRING-$0.8310+ In-Stock
93BK-83350-00-00FLASHER RELAY ASSEMBLY$131.99$102.95Usually ships in 7-10 business days
101N5-83371-20-00

(replaces part #
3Y1-83371-10-00)

HORN$84.99$66.29Not Shipping
1197013-06012-00BOLT$6.49$5.0610+ In-Stock
1292995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
13355-85111-01-00REFLECTOR, FRONT 1$37.99$31.15Usually ships in 7-10 business days
1490202-05191-00

(replaces part #
90430-06012-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
