1983 Yamaha XT550 Flasher Light OEM Parts Diagram

Submodel XT550K - 1983

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FLASHER LIGHT

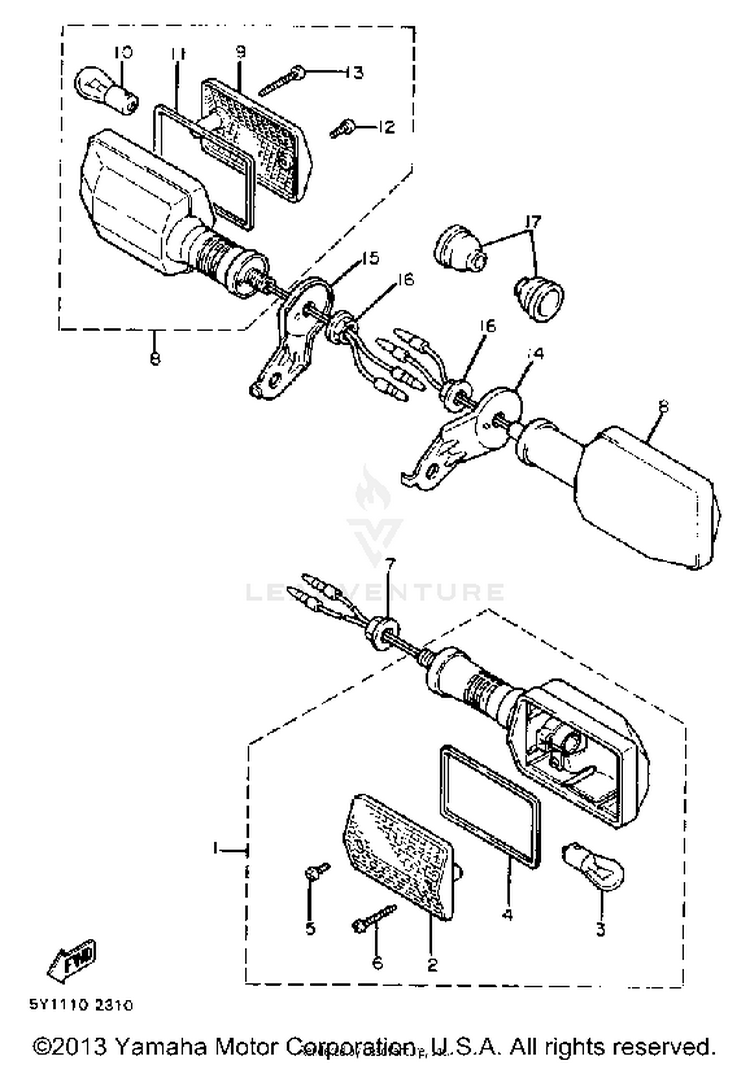

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15Y1-83310-70-00FRONT FLASHER LIGHT ASSEMBLY 1$41.99$34.43Not Shipping
25Y1-83312-00-00LENS, FLASHER$14.49$11.301 In-Stock
3256-83311-70-XXBULB (12V-32CP)$2.35$2.02Not Shipping
45Y1-83313-00-00GASKET, FLASHER LENS$16.49$13.52Usually ships in 7-10 business days
598580-04010-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
697707-40630-00

(replaces part #
97701-40530-00)

SCREW, TAPPING$9.49$7.404 In-Stock
790179-12588-00

(replaces part #
95701-12500-00)

NUT, FLANGE$8.49$6.6210+ In-Stock
837A-83330-21-00REAR FLASHER LIGHT ASSEMBLY 1$131.99$102.95Usually ships in 7-10 business days
95Y1-83312-00-00LENS, FLASHER$14.49$11.301 In-Stock
10256-83311-70-XXBULB (12V-32CP)$2.35$2.02Not Shipping
115Y1-83313-00-00GASKET, FLASHER LENS$16.49$13.52Usually ships in 7-10 business days
1298580-04010-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1397707-40630-00

(replaces part #
97701-40530-00)

SCREW, TAPPING$9.49$7.404 In-Stock
145Y1-83368-01-00STAY, FLASHER$14.49$11.88Usually ships in 7-10 business days
155Y1-83369-01-00STAY, FLASHER$14.49$11.88Usually ships in 7-10 business days
1690179-12588-00

(replaces part #
95701-12500-00)

NUT, FLANGE$8.49$6.6210+ In-Stock
1710V-83365-01-00

(replaces part #
10V-83365-00-00)

CAP$4.35$3.742 In-Stock
