SHIFT CAM FORK

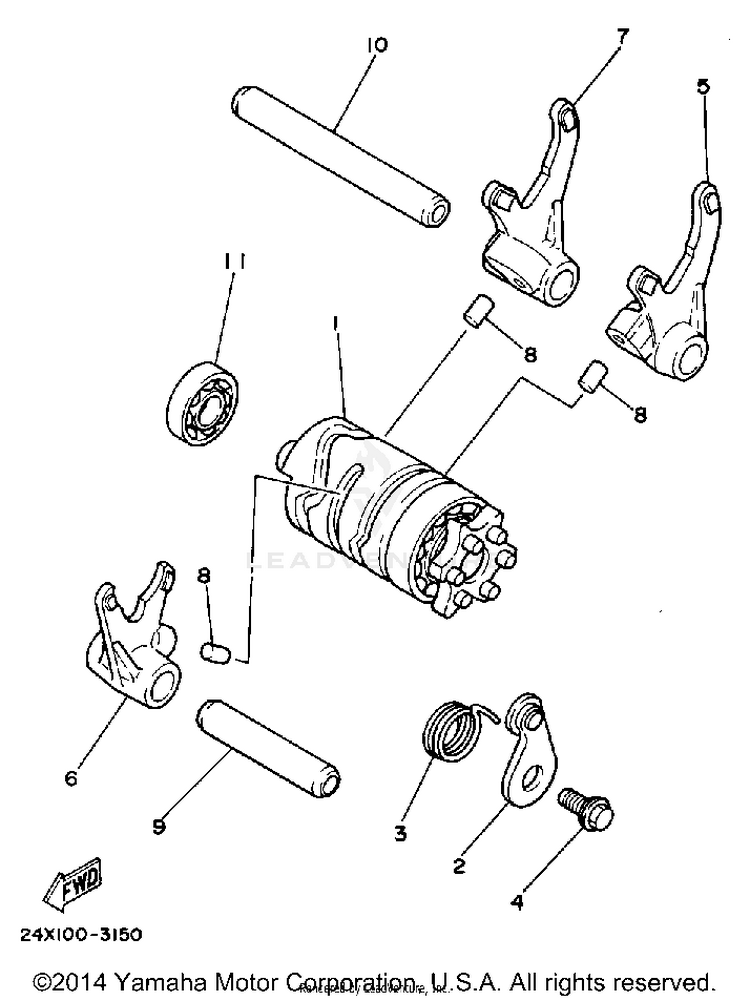

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
124X-18540-00-00SHIFT CAM ASSEMBLY$308.99$241.01Usually ships in 7-10 business days
23R3-18140-00-00STOPPER LEVER ASSEMBLY$31.99$26.23Not Shipping
390508-26435-00SPRING, TORSION$6.99$6.29Not Shipping
490109-06190-00

(replaces part #
50W-21631-00-00)

BOLT$5.99$4.6710+ In-Stock
55X4-18511-00-00FORK, SHIFT 1$37.99$31.15Usually ships in 7-10 business days
65X4-18512-00-00FORK, SHIFT 2$45.99$37.71Usually ships in 7-10 business days
75X4-18513-00-00FORK, SHIFT 3$37.99$31.15Usually ships in 7-10 business days
890250-06013-00PIN, STRAIGHT$10.49$8.1810+ In-Stock
94BA-18531-00-00

(replaces part #
5X5-18531-01-00)

BAR, SHIFT FORK GUIDE 1$13.49$11.06Usually ships in 7-10 business days
105X5-18535-01-00BAR, SHIFT FORK GUIDE 2$21.99$18.03Not Shipping
1193306-00105-00

(replaces part #
93306-00106-00)

BEARING$33.99$26.5110+ In-Stock
