1984 Yamaha IT490 Fender OEM Parts Diagram

Submodel IT490L - 1984

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

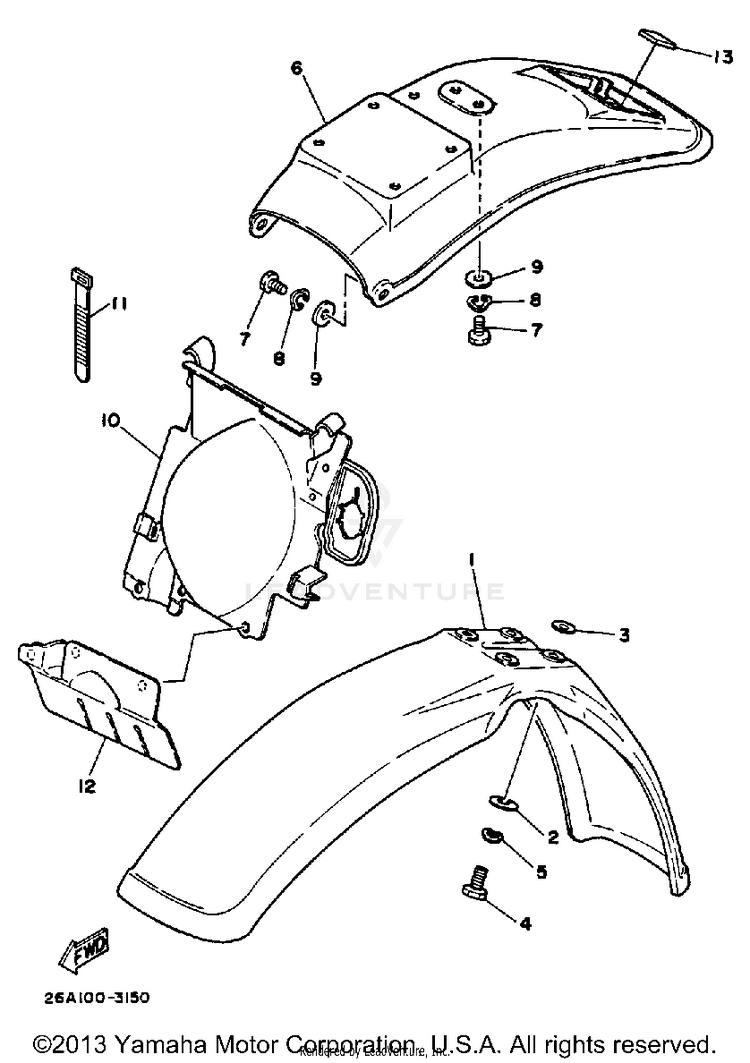

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-90209-06187-00WASHER$9.49$7.4010+ In-Stock
13R9-21511-11-00FENDER, FRONT | SKY BLUE$46.99$45.656 In-Stock
290201-06571-00WASHER, PLATE$10.49$8.1810+ In-Stock
390387-06681-00COLLAR$10.49$8.1810+ In-Stock
497024-06020-00

(replaces part #
97023-06020-00)

BOLT$9.49$7.4010+ In-Stock
592907-06700-00

(replaces part #
92901-06700-00)

WASHER,WAVE$2.00$1.7210+ In-Stock
626A-21610-00-00FENDER, REAR | SKY BLUE$39.24$30.61Not Shipping
797D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
892907-06700-00

(replaces part #
92901-06700-00)

WASHER,WAVE$2.00$1.7210+ In-Stock
990201-06571-00WASHER, PLATE$10.49$8.1810+ In-Stock
1026A-21620-00-00GUARD, MUD$79.99$62.39Usually ships in 7-10 business days
11437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
1223X-21642-00-00GUARD, FLAP$30.99$25.41Not Shipping
1322F-2139X-00-00

(replaces part #
2H7-21628-00-00)

DAMPER$8.49$6.6210+ In-Stock
