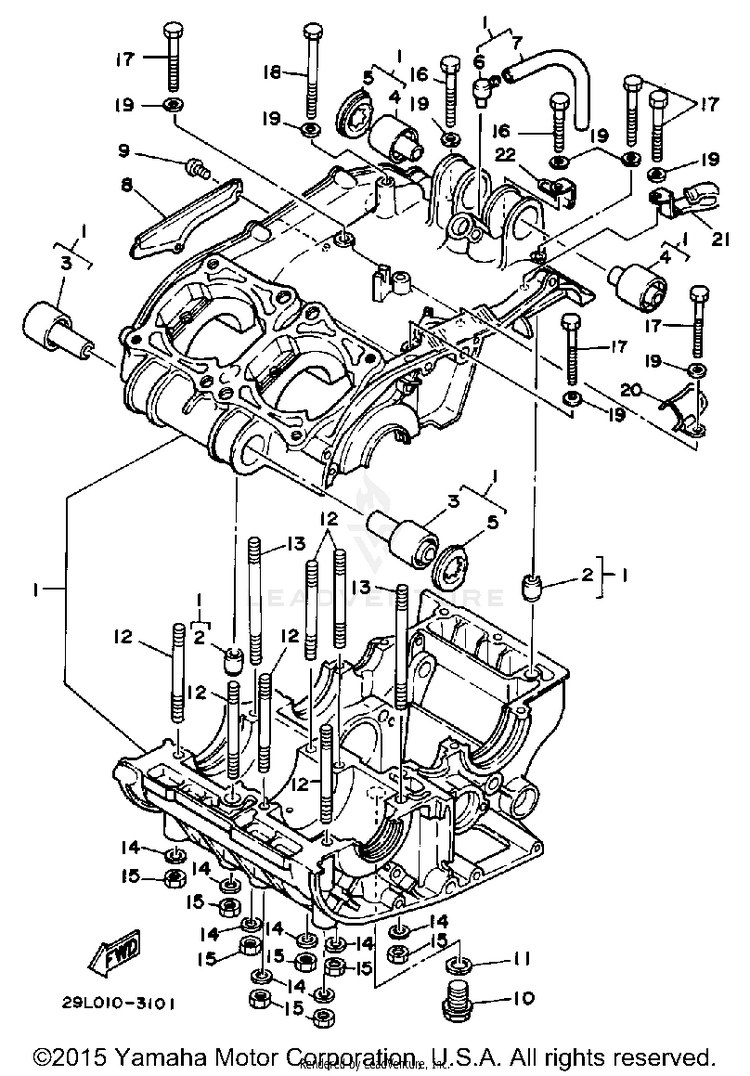

1984 Yamaha RZ350 Crankcase OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	29L-15100-03-00	CRANKCASE ASSEMBLY	$724.99	$606.09	Usually ships in 7-10 business days
2	99530-12016-00 (replaces part # 99510-12016-00)	PIN, DOWEL	$4.89	$4.21	10+ In-Stock
3	90388-10006-00 (replaces part # 2GU-15316-00-00)	DAMPER	$33.99	$26.51	10+ In-Stock
4	90388-10007-00 (replaces part # 4L0-15326-00-00)	DAMPER	$35.99	$28.07	10+ In-Stock
5	2YK-15328-01-00 (replaces part # 2YK-15328-00-00)	SPACER, DAMPER	$24.99	$20.49	Usually ships in 7-10 business days
6	583-15371-00-00	BREATHER	$7.49	$5.84	10+ In-Stock
7	90446-07241-00 (replaces part # 90446-07112-00)	HOSE (3AK)	$11.49	$8.96	5 In-Stock
8	278-15492-01-00	COVER	$8.49	$6.62	10+ In-Stock
9	97885-05010-00 (replaces part # 98580-05010-00)	SCREW, PAN HEAD	$3.15	$2.71	5 In-Stock
10	90109-14385-00	BOLT (90340-14010)	$18.49	$14.42	5 In-Stock
11	4F4-14766-00-00 (replaces part # 137-15353-00-00)	GASKET, DRAIN	$7.49	$5.84	9 In-Stock
12	90116-08064-00	BOLT, STUD	$8.49	$6.62	10+ In-Stock
13	90116-08232-00	BOLT, STUD	$13.49	$10.52	10+ In-Stock
14	90201-08100-00	WASHER, PLATE	$9.49	$7.40	10+ In-Stock
15	95333-08600-00	NUT	$3.80	$3.47	10+ In-Stock
16	97013-06045-00 (replaces part # 97311-06045-00)	BOLT	$1.80	$1.55	8 In-Stock
17	97013-06060-00 (replaces part # 97313-06060-00)	BOLT, HEX	$8.49	$7.64	Usually ships in 7-10 business days
18	97017-06090-00 (replaces part # 97311-06090-00)	BOLT	$3.45	$2.97	6 In-Stock
19	92990-06200-00	WASHER, PLAIN	-	$1.28	10+ In-Stock
20	90462-16130-00	CLAMP	$14.49	$11.30	4 In-Stock
21	90465-08135-00	CLAMP	$6.99	$6.29	Usually ships in 7-10 business days
22	90465-06094-00	CLAMP	$13.49	$10.52	6 In-Stock
