1985 Yamaha RZ350 Headlight OEM Parts Diagram

Submodel RZ350NC - 1985

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

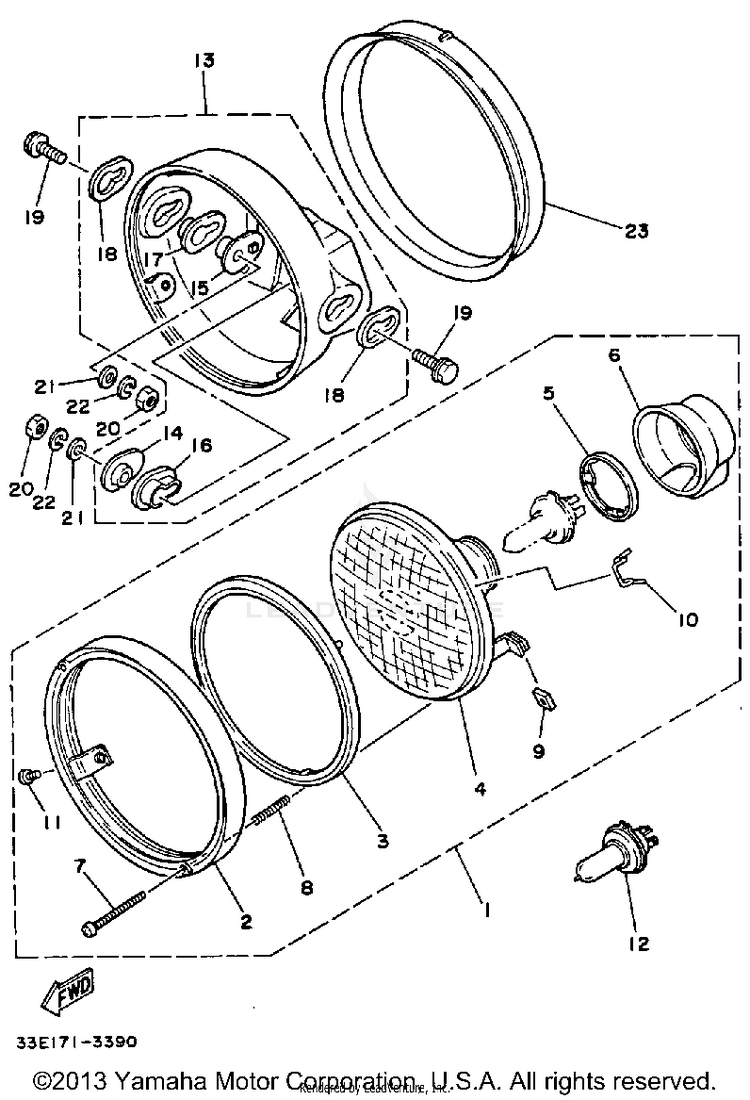

HEADLIGHT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
133E-84303-A0-00HEADLIGHT UNIT ASSEMBLY$104.99$98.38Not Shipping
21AR-84315-00-00RIM, HEADLIGHT (29L-84315-00)$117.99$92.03Usually ships in 7-10 business days
329L-84395-00-00RING, RETAINING$34.99$28.69Usually ships in 7-10 business days
433E-84320-A0-00LENS ASSEMBLY$112.99$88.13Usually ships in 7-10 business days
52F9-84375-00-00SETTING PLATE, BULB$14.99$12.29Usually ships in 7-10 business days
62F9-84397-01-00COVER, SOCKET$33.99$27.87Usually ships in 7-10 business days
743F-84131-00-00SCREW, RIM ADJUSTER$10.99$9.01Usually ships in 7-10 business days
8341-84332-60-00SPRING, SCREW$10.99$8.576 In-Stock
9198-84334-60-00NUT, ADJUSTING$8.49$6.625 In-Stock
1014T-84124-00-00SET SPRING (5G2-84324-A0)$5.49$4.94Usually ships in 7-10 business days
1198517-05012-00

(replaces part #
98516-05012-00)

SCREW, PAN HEAD$5.49$4.283 In-Stock
128V0-84314-10-00

(replaces part #
5V2-84314-00-XX)

BULB, HEADLIGHT (12V-60/55W) | LM$75.99$60.93Usually ships in 7-10 business days
1329L-84330-01-00

(replaces part #
29L-84330-00-00)

BODY ASSY$51.99$40.55Usually ships in 7-10 business days
145G2-84388-00-00COLLAR 1$15.49$12.70Usually ships in 7-10 business days
155G2-84398-00-00SCREW, MNTNG RING$24.99$20.49Usually ships in 7-10 business days
165G2-84366-00-00DAMPER, HEADLIGHT 1$15.49$12.70Usually ships in 7-10 business days
175G2-84367-00-00DAMPER, HEADLIGHT 2$20.99$17.21Usually ships in 7-10 business days
185G2-84368-00-00DAMPER 3$9.49$8.54Usually ships in 7-10 business days
1995817-08030-00

(replaces part #
95816-08030-00)

BOLT, FLANGE$9.49$7.408 In-Stock
2095333-08600-00NUT$3.80$3.4710+ In-Stock
2192990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
2292990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
2329L-28372-02-00DAMPER$7.94$7.15Not Shipping
