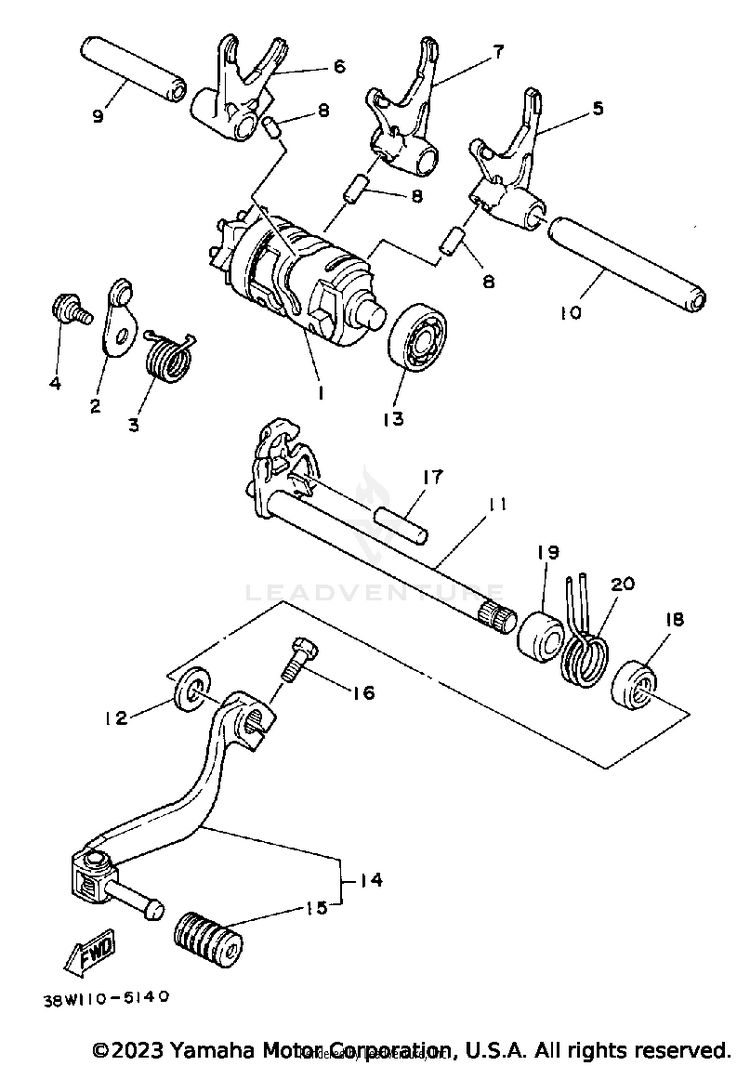

1985 Yamaha Tri-Z 250 Shift Cam-Fork OEM Parts Diagram

Submodel YTZ250N - 1985

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	24Y-18540-00-00	SHIFT CAM ASSEMBLY	$164.99	$128.69	Not Shipping
2	3R4-18140-00-00	STOPPER LEVER ASSEMBLY	$27.99	$22.95	Not Shipping
3	90508-26421-00 (replaces part # 90508-26608-00)	SPRING, TORSION	$5.49	$4.94	Not Shipping
4	90109-06190-00 (replaces part # 50W-21631-00-00)	BOLT	$5.99	$4.67	10+ In-Stock
5	5X5-18511-00-00	FORK, SHIFT 1	$73.99	$57.71	Not Shipping
6	4V3-18512-00-00	FORK, SHIFT 2	$41.99	$34.43	Not Shipping
7	5X5-18513-00-00	FORK, SHIFT 3	$73.99	$57.71	Usually ships in 7-10 business days
8	93606-14154-00	PIN, DOWEL	$2.55	$2.30	10+ In-Stock
9	4BA-18531-00-00 (replaces part # 5X5-18531-01-00)	BAR, SHIFT FORK GUIDE 1	$13.49	$11.06	Usually ships in 7-10 business days
10	5X5-18535-01-00	BAR, SHIFT FORK GUIDE 2	$21.99	$18.03	Not Shipping
11	38W-18101-02-00 (replaces part # 38W-18101-01-00)	SHIFT SHAFT ASSY	$62.99	$49.13	1 In-Stock
12	90201-12657-00	WASHER, PLATE	$2.39	$2.15	Not Shipping
13	93306-00105-00 (replaces part # 93306-00106-00)	BEARING	$33.99	$26.51	10+ In-Stock
14	38W-18110-00-00	SHIFT PEDAL ASSEMBLY	$93.99	$73.31	Not Shipping
15	1W6-18113-00-00	COVER, SHIFT PEDAL	$5.99	$4.67	6 In-Stock
16	97017-06020-00 (replaces part # 97011-06020-00)	BOLT	$4.06	$3.49	10+ In-Stock
17	93608-25150-00	PIN, DOWEL	$2.50	$2.25	Not Shipping
18	93102-12321-00	OIL SEAL (SD 12-22-5 HS)	$13.49	$10.52	10+ In-Stock
19	90560-12171-00	SPACER	$6.49	$5.06	Not Shipping
20	90508-29361-00	SPRING, TORSION	$9.99	$8.99	Not Shipping
