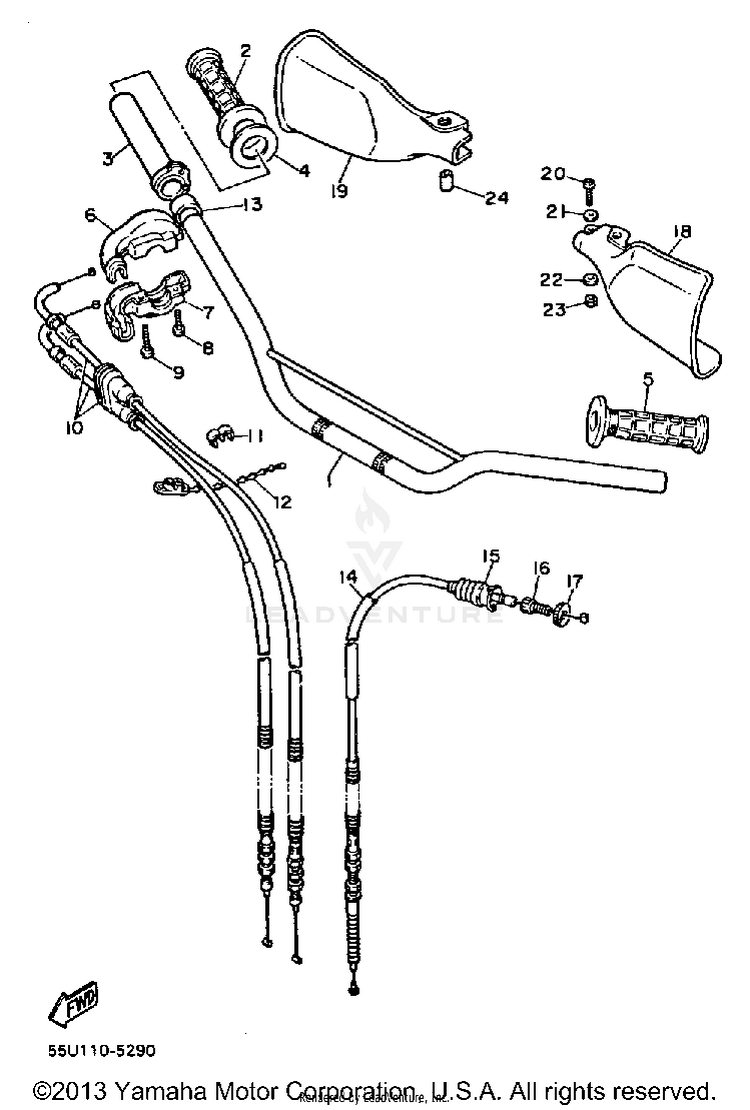

1985 Yamaha TT600 Handlebar-Cable OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	34K-26111-00-00	HANDLEBAR	$140.99	$109.97	Usually ships in 7-10 business days
2	1LX-26242-01-00	GRIP (RIGHT)	$37.99	$29.63	6 In-Stock
3	1RF-26243-00-00 (replaces part # 3Y1-26243-01-00)	TUBE, THROTTLE GUIDE	$31.99	$24.95	9 In-Stock
4	3Y1-26249-00-00	RING, LEAF	$10.99	$8.57	10+ In-Stock
5	1LX-26241-01-00 (replaces part # 4V4-26241-01-00)	GRIP (LEFT)	$36.99	$28.85	4 In-Stock
6	34K-26281-00-00	CAP, GRIP UPPER	$30.99	$25.41	Usually ships in 7-10 business days
7	1VJ-26282-00-00	CAP, GRIP LOWER	$28.99	$23.77	Usually ships in 7-10 business days
8	98517-05020-00 (replaces part # 98506-05020-00)	SCREW, PAN HEAD	$1.75	$1.50	3 In-Stock
9	98507-05025-00 (replaces part # 98506-05025-00)	SCREW, PAN HEAD	$9.49	$7.40	10+ In-Stock
10	34K-26302-00-00	THROTTLE CABLE ASSEMBLYASSY	$78.79	$61.46	Not Shipping
11	90468-15009-00	CLIP	$8.49	$7.64	Usually ships in 7-10 business days
12	90464-20031-00	CLAMP	$2.65	$2.38	4 In-Stock
13	90387-227H7-00	COLLAR	$9.49	$7.40	10+ In-Stock
14	55U-26335-01-00	CABLE, CLUTCH	$69.99	$54.59	2 In-Stock
15	1E6-26342-00-00	BOOT, CABLE	$33.99	$26.51	4 In-Stock
16	90123-08090-00	BOLT	$18.49	$14.42	5 In-Stock
17	90179-08401-00	NUT	-	$3.67	Not Shipping
18	3Y0-26141-00-00	GUARD, BRUSH 1 \| CLEAN WHITE	$47.99	$39.35	Not Shipping
19	34L-26142-10-00	XT600L BUSH GD RH \| CLEAN WHITE	$16.99	$13.93	Usually ships in 7-10 business days
20	98507-06014-00 (replaces part # 98503-06014-00)	SCREW, PAN HEAD	$9.49	$7.40	10+ In-Stock
21	90201-061A5-00	WASHER, PLATE	$8.49	$6.62	10+ In-Stock
22	92990-06200-00	WASHER, PLAIN	-	$1.28	10+ In-Stock
23	95380-06700-00	NUT	$9.49	$7.40	4 In-Stock
24	90387-06500-00	COLLAR	$9.49	$7.40	3 In-Stock
