1986 Yamaha TT225 Handlebar-Cable OEM Parts Diagram

Submodel TT225S - 1986

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLEBAR-CABLE

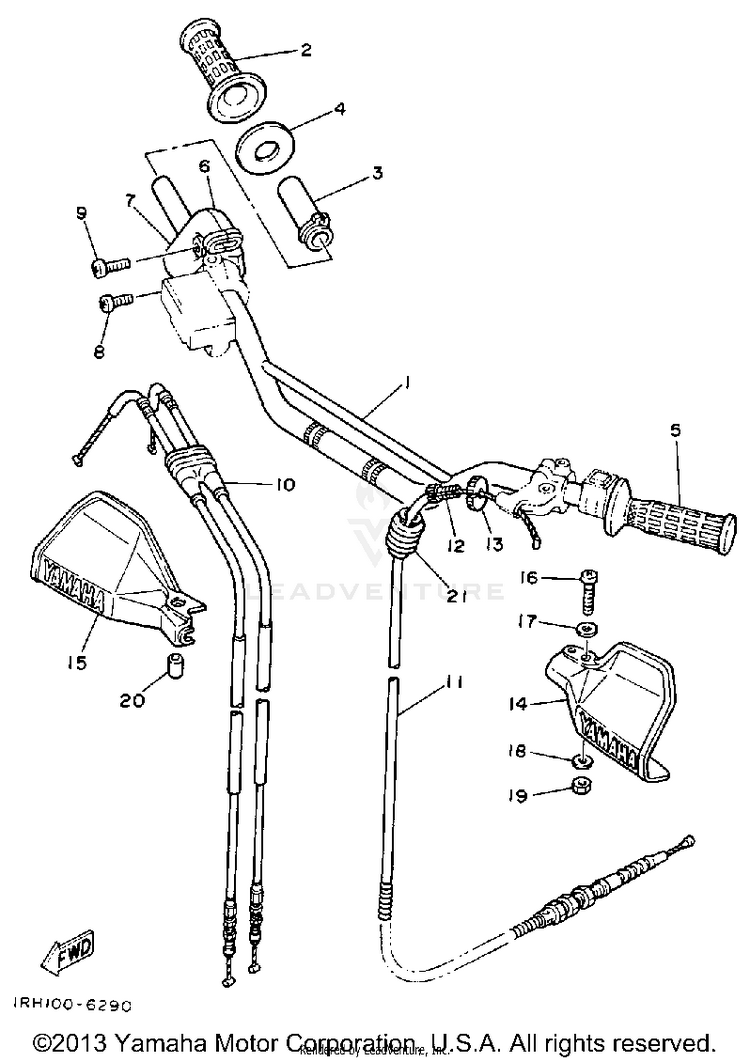

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13WC-26111-10-00HANDLEBAR$90.99$70.97Usually ships in 7-10 business days
21LX-26242-01-00GRIP (RIGHT)$37.99$29.636 In-Stock
31RF-26243-00-00

(replaces part #
3Y1-26243-01-00)

TUBE, THROTTLE GUIDE$31.99$24.959 In-Stock
43Y1-26249-00-00RING, LEAF$10.99$8.5710+ In-Stock
51LX-26241-01-00GRIP (LEFT)$36.99$28.854 In-Stock
634K-26281-00-00CAP, GRIP UPPER$30.99$25.41Usually ships in 7-10 business days
71VJ-26282-00-00CAP, GRIP LOWER$28.99$23.77Usually ships in 7-10 business days
898517-05020-00

(replaces part #
98506-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
998507-05025-00

(replaces part #
98506-05025-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
101VJ-26302-00-00THROTTLE CABLE ASSEMBLY$90.99$70.97Not Shipping
111RH-26335-00-00CABLE, CLUTCH$51.99$40.55Usually ships in 7-10 business days
1290123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
1390179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
141LN-26141-00-00GUARD, BRUSH 1$75.99$59.27Not Shipping
153TB-26142-20-00GUARD, BRUSH 2$57.99$45.23Not Shipping
1697885-06035-00

(replaces part #
98580-06035-00)

SCREW, PAN HEAD$6.49$5.119 In-Stock
1790201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
1890201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
1995380-06700-00NUT$9.49$7.404 In-Stock
2090387-06500-00COLLAR$9.49$7.403 In-Stock
211E6-26342-00-00BOOT, CABLE$33.99$26.514 In-Stock
