1986 Yamaha TT350 Eelctrical 1 OEM Parts Diagram

Submodel TT350S - 1986

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EELCTRICAL 1

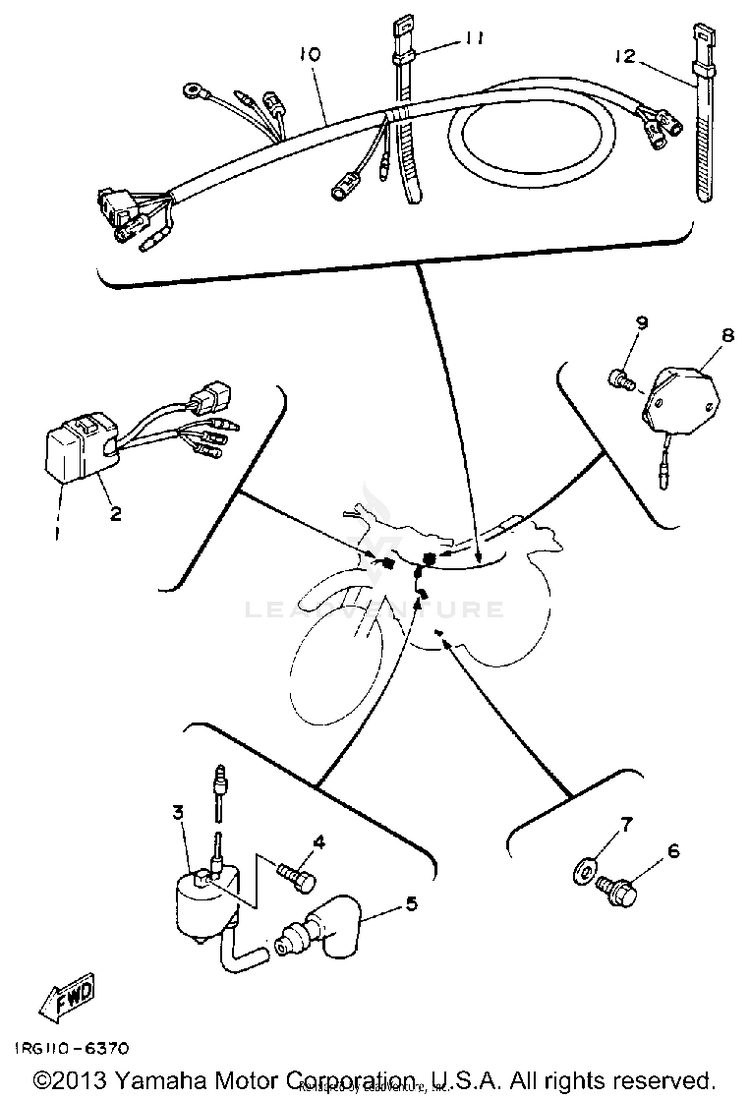

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130X-85540-20-00CDI UNIT ASSEMBLY$486.99$379.85Usually ships in 7-10 business days
23TJ-82131-00-00BAND, BATTERY$24.99$20.491 In-Stock
33SR-82310-10-00

(replaces part #
30X-82310-40-00)

IGNITION COIL ASSY$149.99$116.99Not Shipping
497017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
54VW-82370-00-00

(replaces part #
1LN-82370-00-00)

PLUG CAP ASSY$75.99$59.276 In-Stock
690340-10003-00PLUG, STRAIGHT SCREW$9.49$7.404 In-Stock
790430-10171-00BOLT, UNION$3.45$2.9710+ In-Stock
8Y06-03963-00-00

(replaces part #
82F-81910-A0-00)

VOLTAGEREGULATORASSY$59.99$47.913 In-Stock
997885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
101RG-82590-00-00WIRE HARNESS ASSEMBLY$25.99$21.31Usually ships in 7-10 business days
1125G-83936-01-00BAND, SWITCH CORD$5.49$4.283 In-Stock
12437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
