1986 Yamaha TT600 Cylinder Head OEM Parts Diagram

Submodel TT600S - 1986

Shop Aftermarket Parts

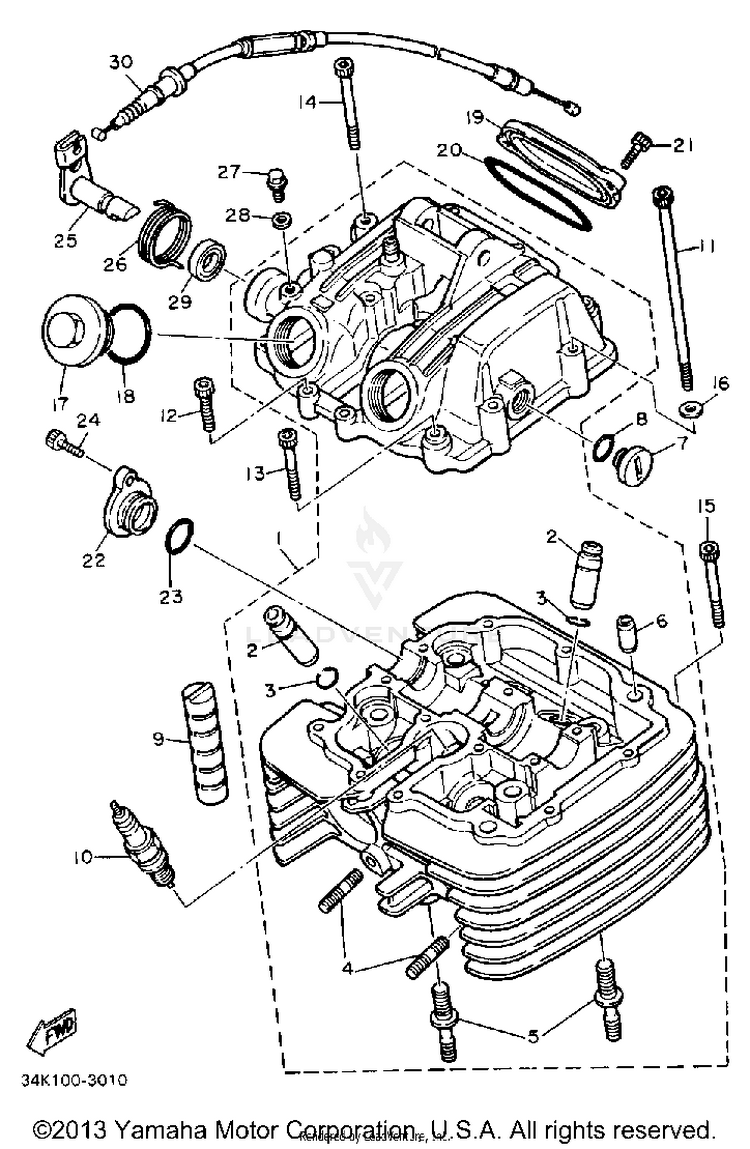

CYLINDER HEAD

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
134K-11101-03-00CYLINDER HEAD ASSEMBLY$854.99$715.52Usually ships in 7-10 business days
24H7-11133-11-00

(replaces part #
4H7-11133-10-00)

GUIDE, VALVE 1$74.99$59.56Usually ships in 7-10 business days
393440-12052-00CIRCLIP$2.60$2.248 In-Stock
490116-06475-00BOLT, STUD$9.49$7.4010+ In-Stock
590116-10329-00

(replaces part #
90116-10387-00)

BOLT, STUD$17.49$14.34Usually ships in 7-10 business days
699530-10114-00

(replaces part #
99510-10114-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
790340-14079-00PLUG, STRAIGHT SCREW$20.99$16.372 In-Stock
893210-14369-00O-RING$8.49$6.6210+ In-Stock
9583-11127-00-00ABSORBER 3$8.49$6.6210+ In-Stock
10DP7-EA900-00-00

(replaces part #
NGK-DP7EA-90-00)

DP7EA9 NGK SPLUG 1$2.95$2.66Usually ships in 7-10 business days
1191317-06125-00

(replaces part #
91316-06125-00)

BOLT$19.49$15.202 In-Stock
1291317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
1391317-06040-00

(replaces part #
91316-06040-00)

BOLT, HEX. SOCKET HEAD$4.05$3.4810+ In-Stock
1491317-06055-00

(replaces part #
91316-06055-00)

BOLT$4.50$3.8710+ In-Stock
1591317-06050-00

(replaces part #
91316-06050-00)

BOLT$4.20$3.6110+ In-Stock
1692907-06600-00

(replaces part #
92906-06600-00)

WASHER, PLATE$1.00$0.9910+ In-Stock
171H2-11186-00-00PLUG, VIEWER$45.99$37.71Usually ships in 7-10 business days
1893210-32172-00O-RING$8.49$6.6210+ In-Stock
195Y1-11187-00-00COVER, CYLINDER HEAD SIDE 3$33.99$27.87Usually ships in 7-10 business days
2093210-62446-00O-RING$12.49$9.7410+ In-Stock
2191317-06018-00

(replaces part #
91316-06018-00)

BOLT, HEX. SOCKET HEAD$9.49$7.4010+ In-Stock
2299999-03124-00

(replaces part #
34K-12215-01-00)

CAP,TENSIONER CASE$57.99$45.23Usually ships in 7-10 business days
2393210-19522-00O-RING$8.49$6.6210+ In-Stock
2491317-06020-00

(replaces part #
91316-06020-00)

BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
251JK-12288-00-00

(replaces part #
5Y1-12288-00-00)

CAM, DCOMP$45.99$37.71Usually ships in 7-10 business days
2690508-18551-00SPRING, TORSION$10.49$8.60Usually ships in 7-10 business days
2790109-06418-00BOLT$10.49$8.1810+ In-Stock
2890430-06014-00GASKET$8.99$7.0110+ In-Stock
2993102-12321-00OIL SEAL (SD 12-22-5 HS)$13.49$10.5210+ In-Stock
305Y1-12292-00-00CABLE, DCOMP$69.99$54.59Usually ships in 7-10 business days
